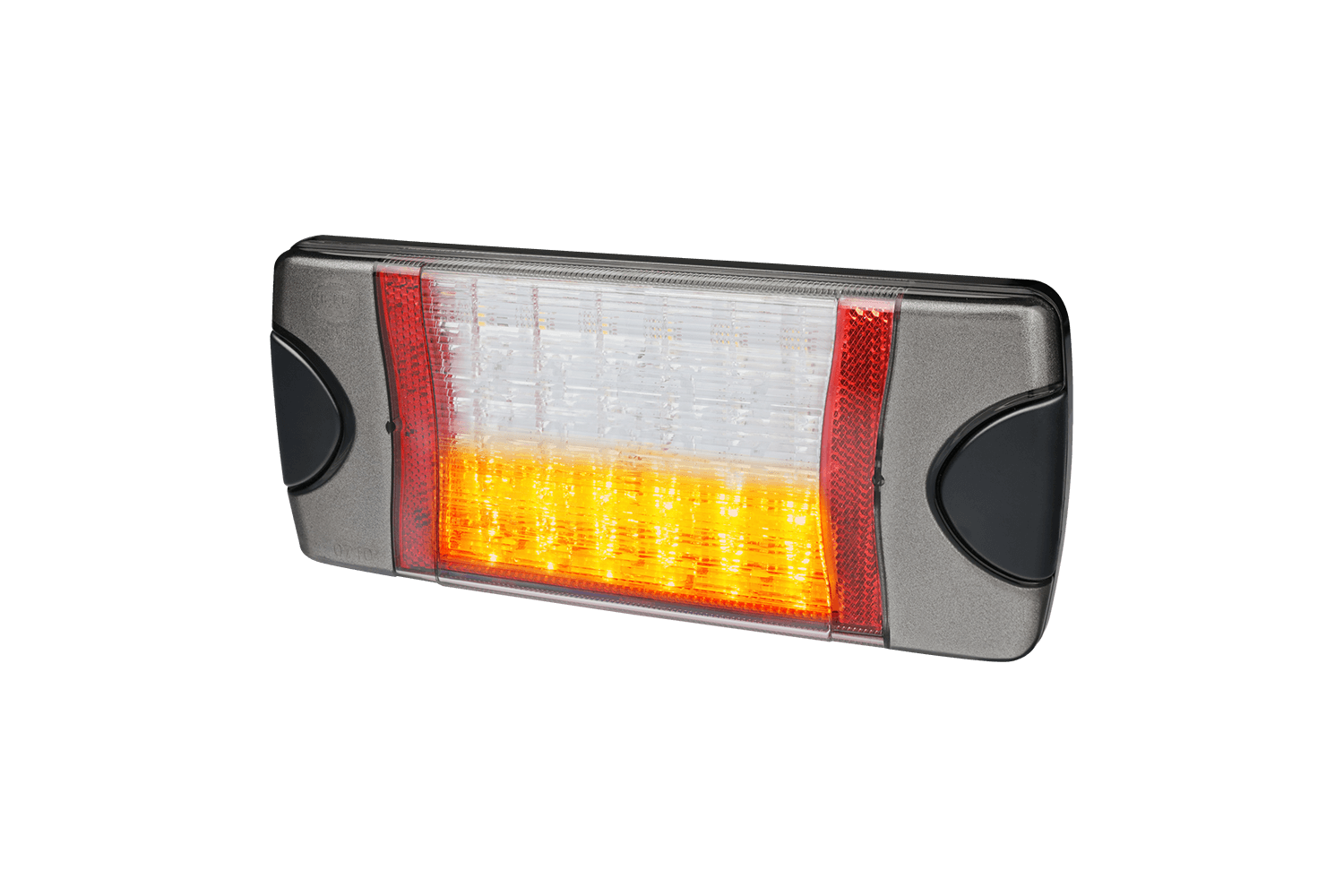

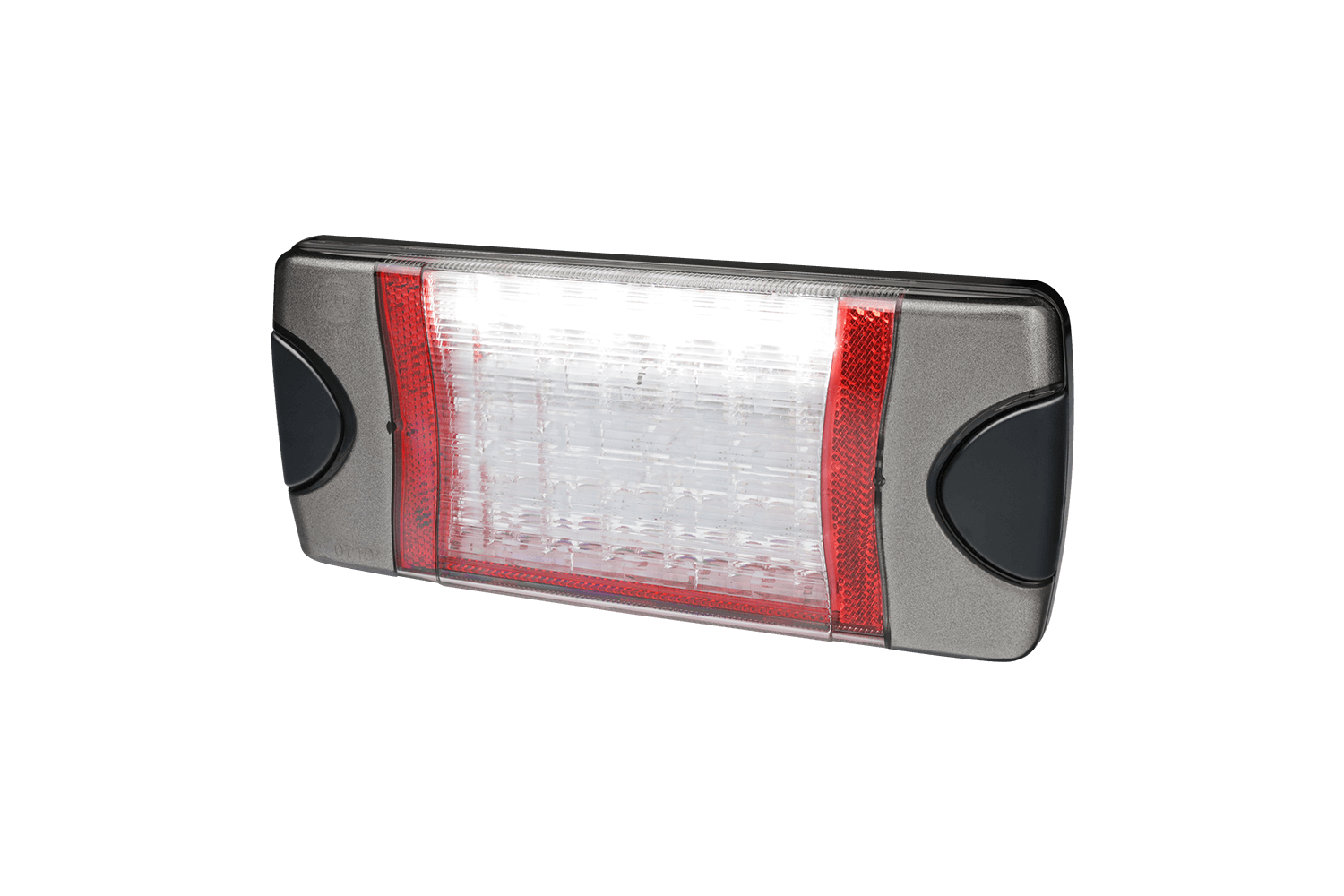

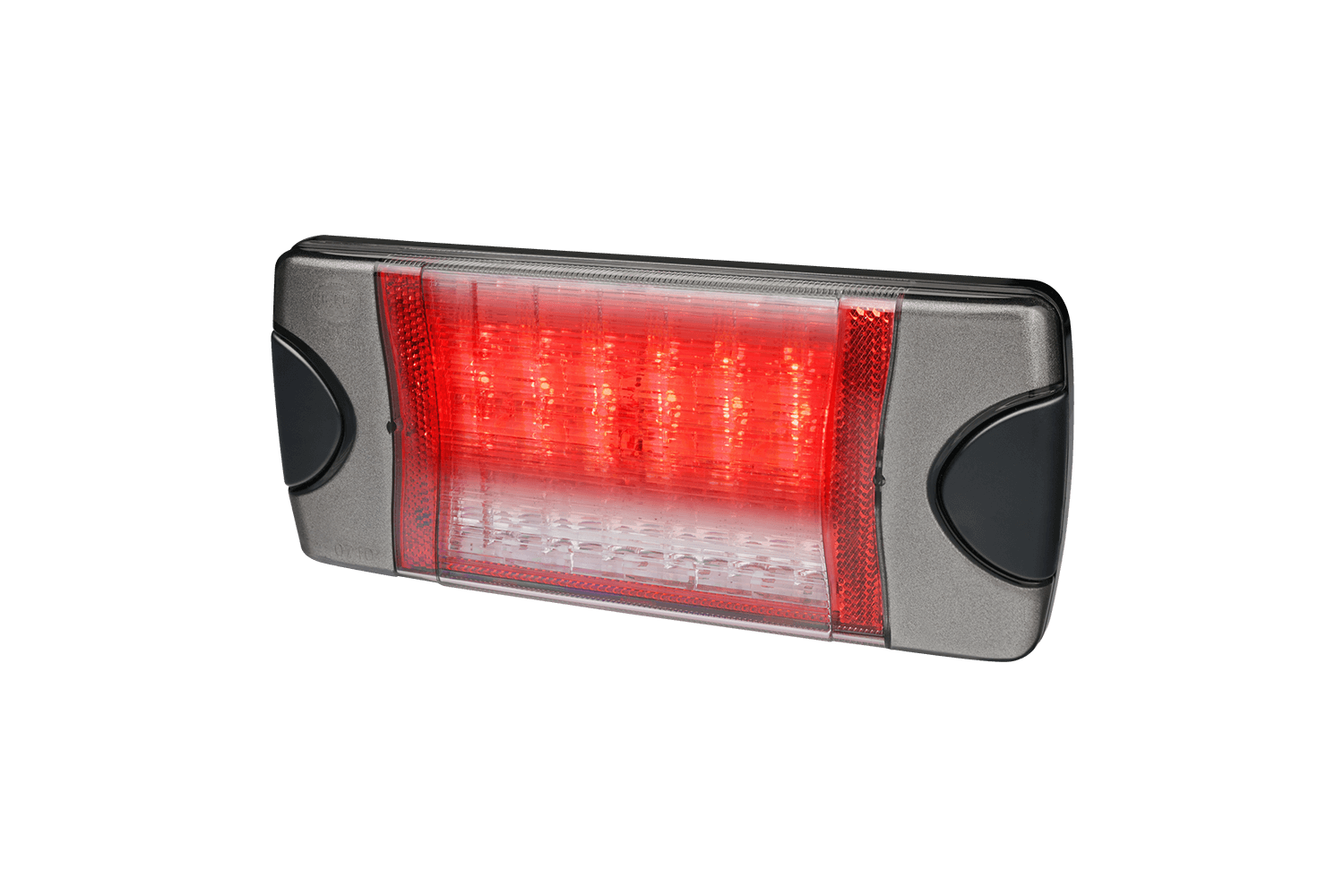

Hella LED rear lamp DuraLED Combi
R0,00
The HELLA LED rear lamp DuraLED Combi shines through its high resistance and a unique, slim design with a mounting height of only 25 mm.
Thanks to the maintenance-free LEDs with low power consumption, the impact-resistant lens, and the protection classes IP 6K7/IP 6K9K, the DuraLED Combi is extraordinarily resilient and is particularly suitable for demanding areas of application. On request, the lens can be made of the innovative, high-strength, high-tech material Grilamid.
Specifications
| Rated voltage | 12 V / 24 V |
| Power consumption | Tail light: 1.5 W Stop light: 5 W Direction indicator light: 6 W Reverse light: 2 W Parking light (2VP 015 075-101 only): 1.5 W |
| Light function | Tail light, stop light, direction indicator light, reverse light, parking light (2VP 015 075-101 only) |
| Light source | LED |
| Temperature range | Out of operation: -40 °C to +65 °C In operation: Up to +50 °C |
| Protection class | IP 6K7, IP 6K9K |
| Type approval | ECE E24 5925, GGVS/ADR |
| EMC protection | ECE R10 05 2650 |
| Specification | HELLA Standard 67101, Classes 2.2, 5.1, 6.1, 7.2, 8.1, 11.2 |
| Mounting | Horizontal mounting position |
The HELLA LED rear lamp DuraLED Combi shines through its high resistance and a unique, slim design with a mounting height of only 25 mm.
Thanks to the maintenance-free LEDs with low power consumption, the impact-resistant lens, and the protection classes IP 6K7/IP 6K9K, the DuraLED Combi is extraordinarily resilient and is particularly suitable for demanding areas of application. On request, the lens can be made of the innovative, high-strength, high-tech material Grilamid.
Surface mounting is horizontal; variants for vertical mounting are also available. Thanks to dual-voltage technology, the ECE-approved and EMC-tested HELLA DuraLED Combi can be used in both 12 V and 24 V environments. It is also approved for transport of dangerous goods according to GGVS/ADR.
| Light functions | Connection | Part number |
|---|---|---|

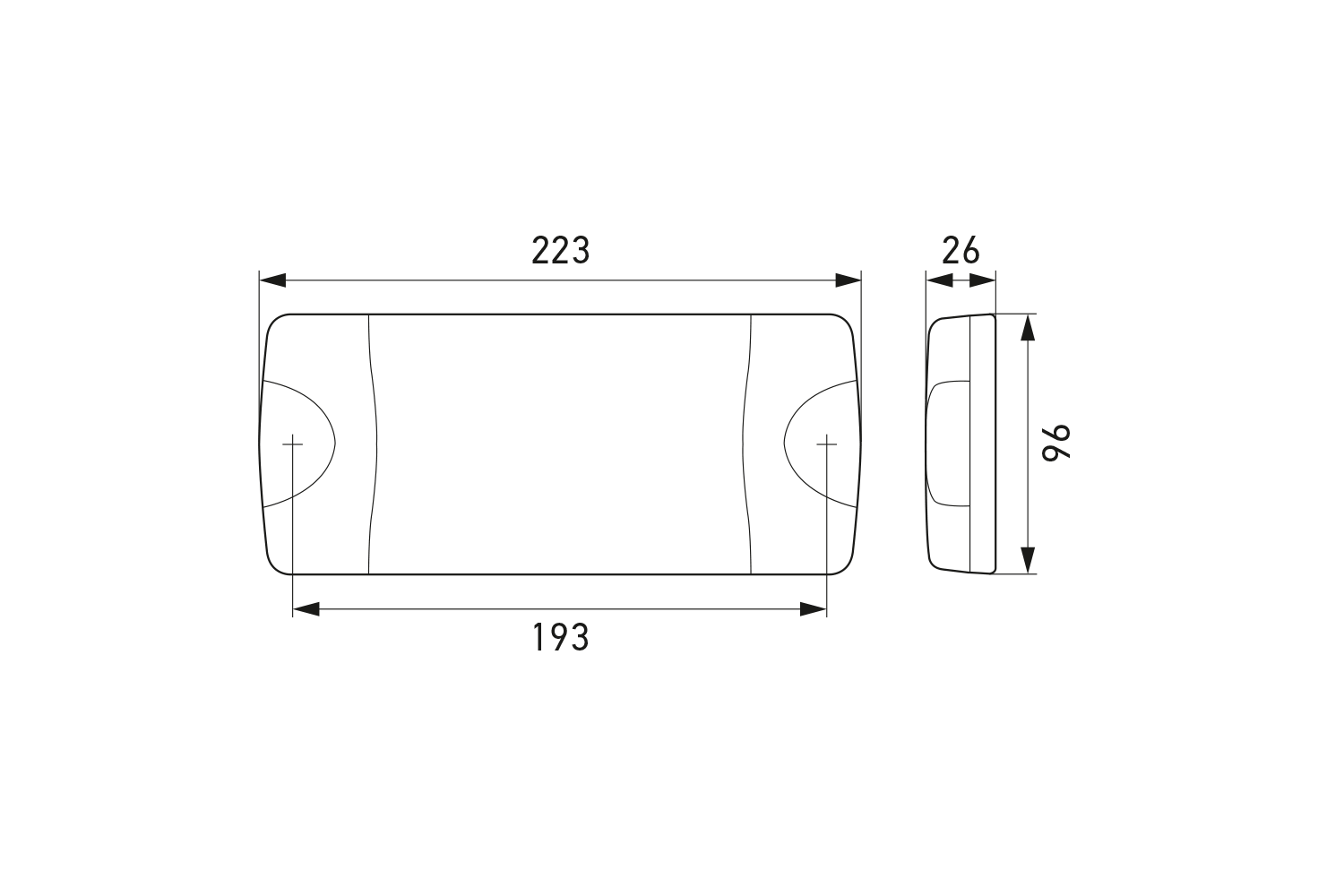

| Tail light, stop light, direction indicator light, reverse light | With 2,500 mm cable | 2VP-015074-101 |

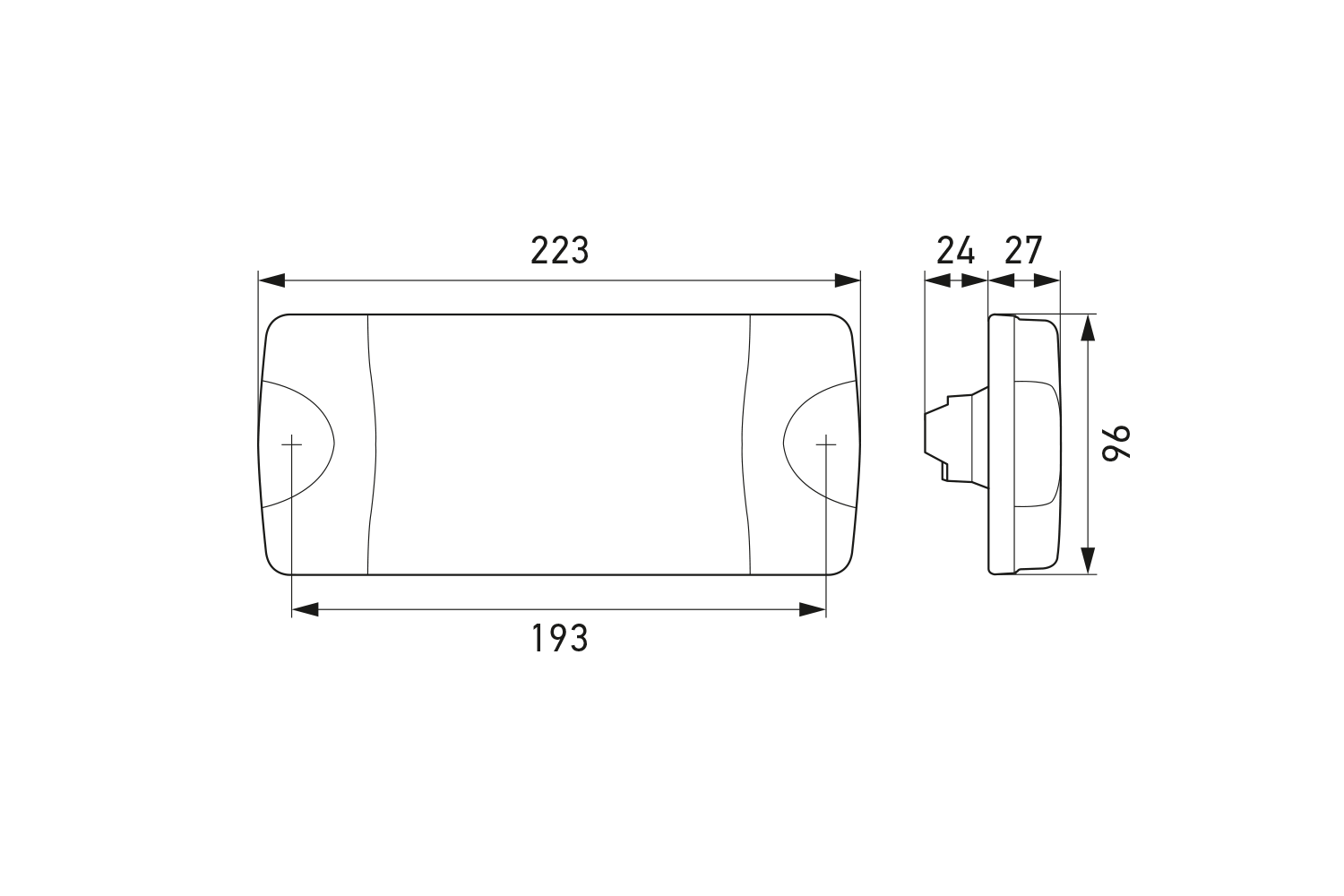

| Tail light, stop light, direction indicator light, reverse light, parking light | With integrated 6-pin DEUTSCH connector (DT 06-6S mating connector to be used) | 2VP-015075-101 |
Additional information
| Light functions | Tail light, stop light, direction indicator light, reverse light, Tail light, stop light, direction indicator light, reverse light, parking light |
|---|---|
| Connection | With 2,500 mm cable, With integrated 6-pin DEUTSCH connector (DT 06-6S mating connector to be used) |
