Hella FL Mini
R0,00

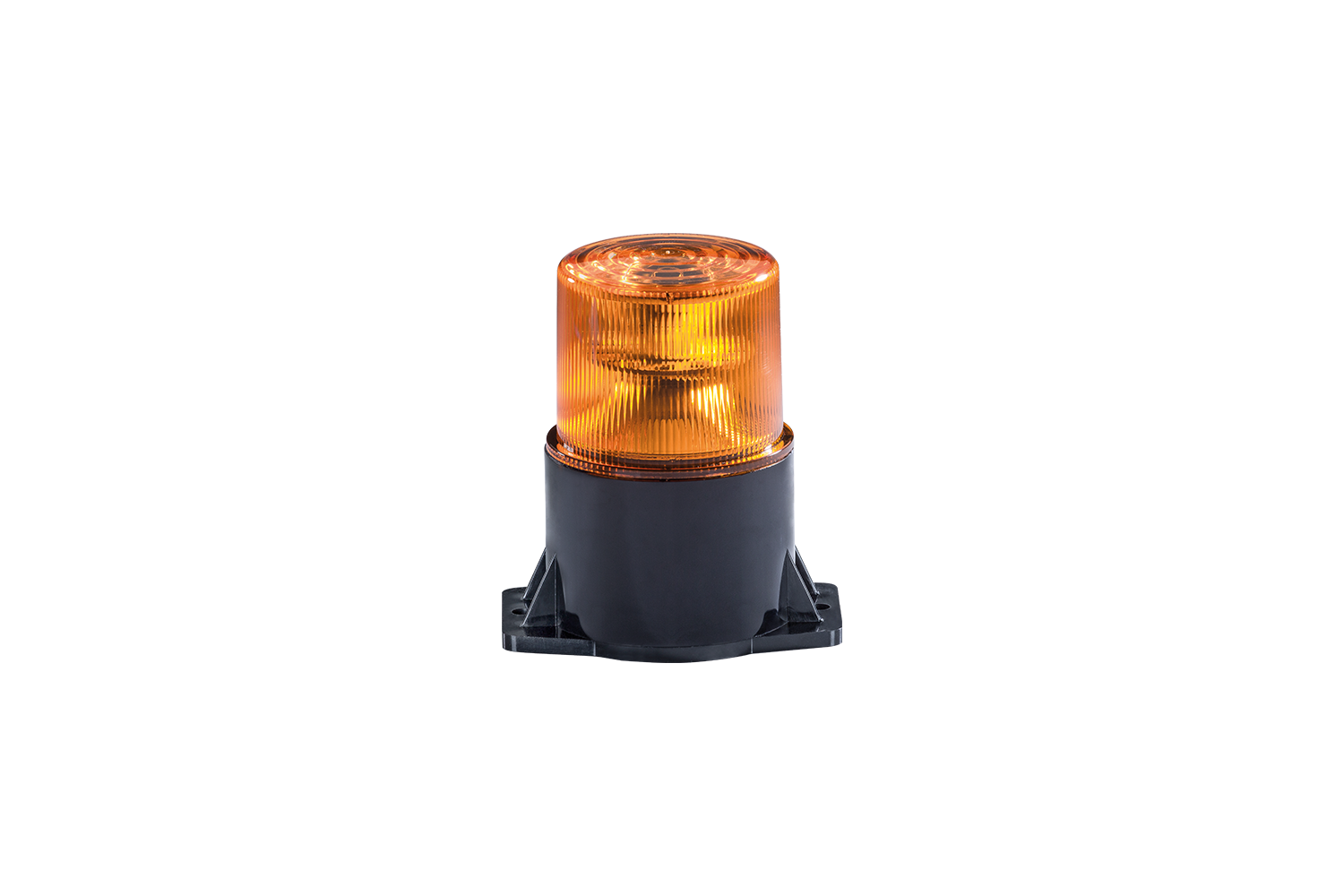

Minimal size, maximum warning effect: Thanks to its ultra-compact dimensions, robust design and highly efficient LED technology, the amber HELLA FL Mini LED flashing beacon is particularly suitable for areas of application with cramped mounting conditions and for vehicles with battery operation or a loaded alternator. The power consumption is only 8 watts.
With its flashing light function, the multi-voltage-capable beacon generates an attention-grabbing, clearly perceptible warning signal, increasing the operational safety.
Specifications
| Operating voltage | Multi-voltage (10-80 V) |
| Rated voltage | 12 V/ 24 V/ 48 V |
| Current consumption | 0.67 A (12 V) 0.3 A (24 V) 0.1 A (48 V) |
| Power consumption | 8 W |
| Light function | Flashing |
| Light source | LED |
| Material | Light dome: polycarbonate |
| Temperature range | – 40 °C to + 65 °C |
| Protection class | IP 6K7, IP 9K |
| Type approval | SAE J845 Class 3, UL-approval |
| EMC protection | ECE-R10 |
Minimal size, maximum warning effect: Thanks to its ultra-compact dimensions, robust design and highly efficient LED technology, the amber HELLA FL Mini LED flashing beacon is particularly suitable for areas of application with cramped mounting conditions and for vehicles with battery operation or a loaded alternator. The power consumption is only 8 watts.
With its flashing light function, the multi-voltage-capable beacon generates an attention-grabbing, clearly perceptible warning signal, increasing the operational safety.
The integrated electronics protect against polarity reversal and ensure that the long-lasting LEDs have a uniform flashing signal. The lamp is dust-proof and waterproof and, thanks to the impact-resistant amber polycarbonate light dome, exceptionally resistant to external influences, such as shocks and vibrations. Upright mounting is implemented via fixed surface mounting.
Note: The FL Mini LED flashing beacon does not have approval for use in traffic in the European Union. For countries outside the EU, please observe the relevant national requirements. The beacon is SAE approved.
| Type of mounting | Light dome | Part number |
|---|---|---|
| Fixed mounting (F) | Amber | 2XD-014959-111 |
Additional information
| Type of mounting | Fixed Mounting |
|---|---|
| Cover Lens | Amber |
