Hella HypaLUME 110/230V AC LED Flood Light – Heavy Duty
R0,00
The Amber 110/230V AC HypaLUME has been designed for applications where high-output lighting in extreme environments is required. Using light with a warmer colour temperature can provide additional improvements in visibility for areas of high dust, fog and/or snowy conditions. The lamp produces a net output of 19,000 lumens at a voltage input range of 100-240V AC whilst only consuming 300W. Comprehensive sealing and anti-corrosion measures have been taken to ensure this lamp withstands the toughest conditions. The premium aluminium housing is corrosion-resistant with a non-stick and easy-to-clean surface coating. Heavy-duty polycarbonate lens offers unbeatable toughness against impacts and vibration. The LEDs have a colour temperature of 2500K to produce significantly reduced glare compared to traditional white floodlighting.
Specifications
| Operating voltage | Multi-voltage (100-240 V AC) |
| Rated voltage | 110 V AC/ 230 V AC |
| Power consumption | max. 300 W |
| Light output | 28,000 lm |
| Light source | LED |
| Colour temperature |
Standard: 5,700 K |
| Material |
Housing: premium aluminium with non-stick coating |
| Weight |
Standard: 15,590 g |
| Temperature range | -40 °C to +50 °C |
| Protection class | IP 6K7, IP 6K6 |
| EMC protection | RCM, FCC |
| Mounting | Upright and pendant |
| Connection | Wieland RST Mini connector – 16 A, 2,000 mm single pluggable sheathed cable is included in delivery |
The Amber 110/230V AC HypaLUME has been designed for applications where high-output lighting in extreme environments is required. Using light with a warmer colour temperature can provide additional improvements in visibility for areas of high dust, fog and/or snowy conditions. The lamp produces a net output of 19,000 lumens at a voltage input range of 100-240V AC whilst only consuming 300W. Comprehensive sealing and anti-corrosion measures have been taken to ensure this lamp withstands the toughest conditions.
The premium aluminium housing is corrosion-resistant with a non-stick and easy-to-clean surface coating. Heavy-duty polycarbonate lens offers unbeatable toughness against impacts and vibration. The LEDs have a colour temperature of 2500K to produce significantly reduced glare compared to traditional white floodlighting. The LED driver electronics ensure light output remains stable over a wide range of voltage variations. The HypaLUME is also protected from overvoltage and short circuit faults.
The HypaLUME is designed to operate over a temperature range from -40°C to +50°C
| Variant | Cover lens colour | Illumination | Part number |
|---|---|---|---|
| HypaLUME 110/230 V AC | Clear | Close-range illumination | 1GJ-958334-011 |
| Long-range illumination | 1GJ-958334-021 | ||
| Extra-wide illumination | 1GJ-958334-031 | ||

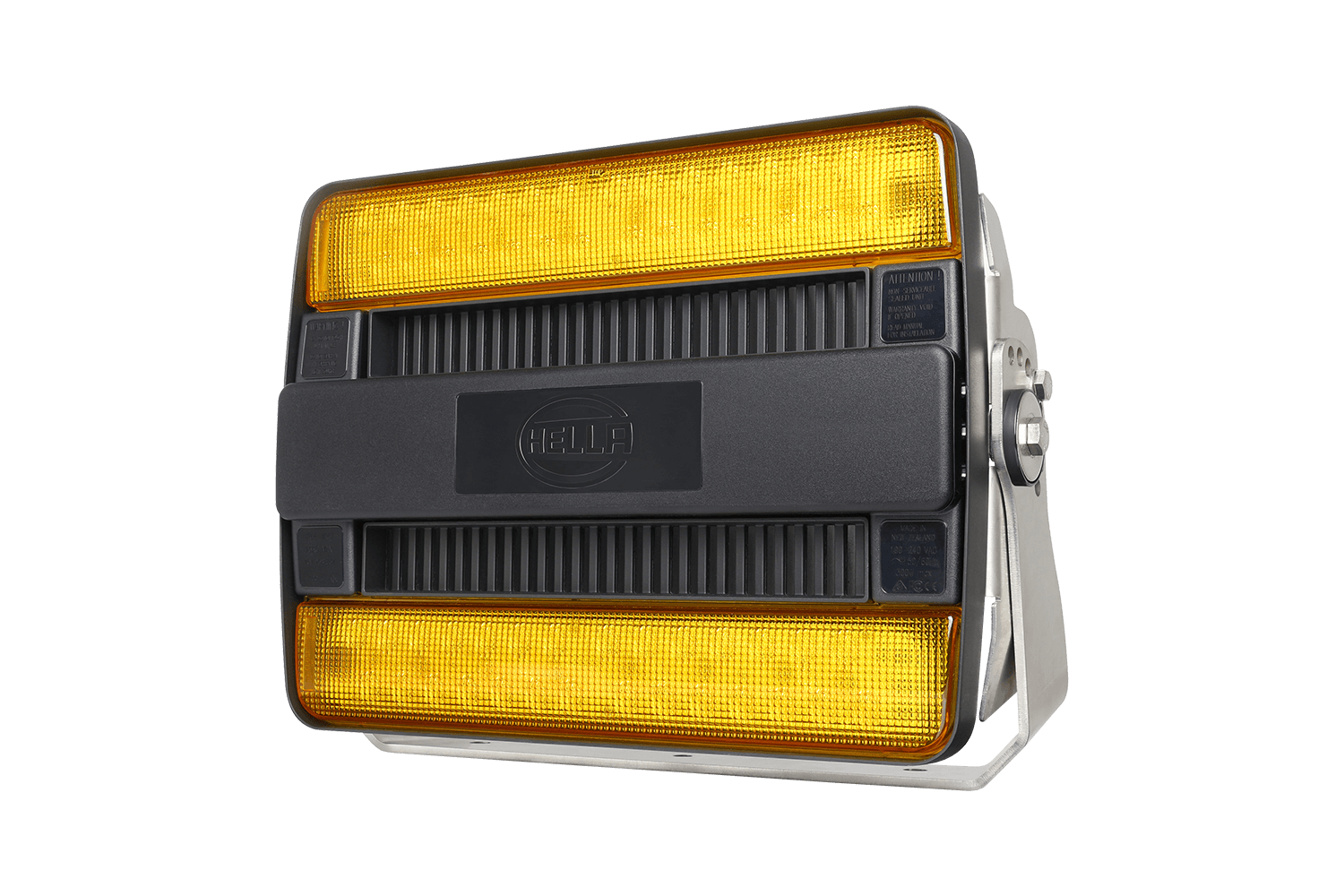

| HypaLUME 110/230 V AC Amber | Amber | Close-range illumination | 1GJ-958334-111 |
| Long-range illumination | 1GJ-958334-121 | ||
| Extra-wide illumination | 1GJ-958334-131 |
Additional information
| Illumination | Close-range, Long-range, Extra-wide |
|---|---|
| Cover Lens | White, Amber |
