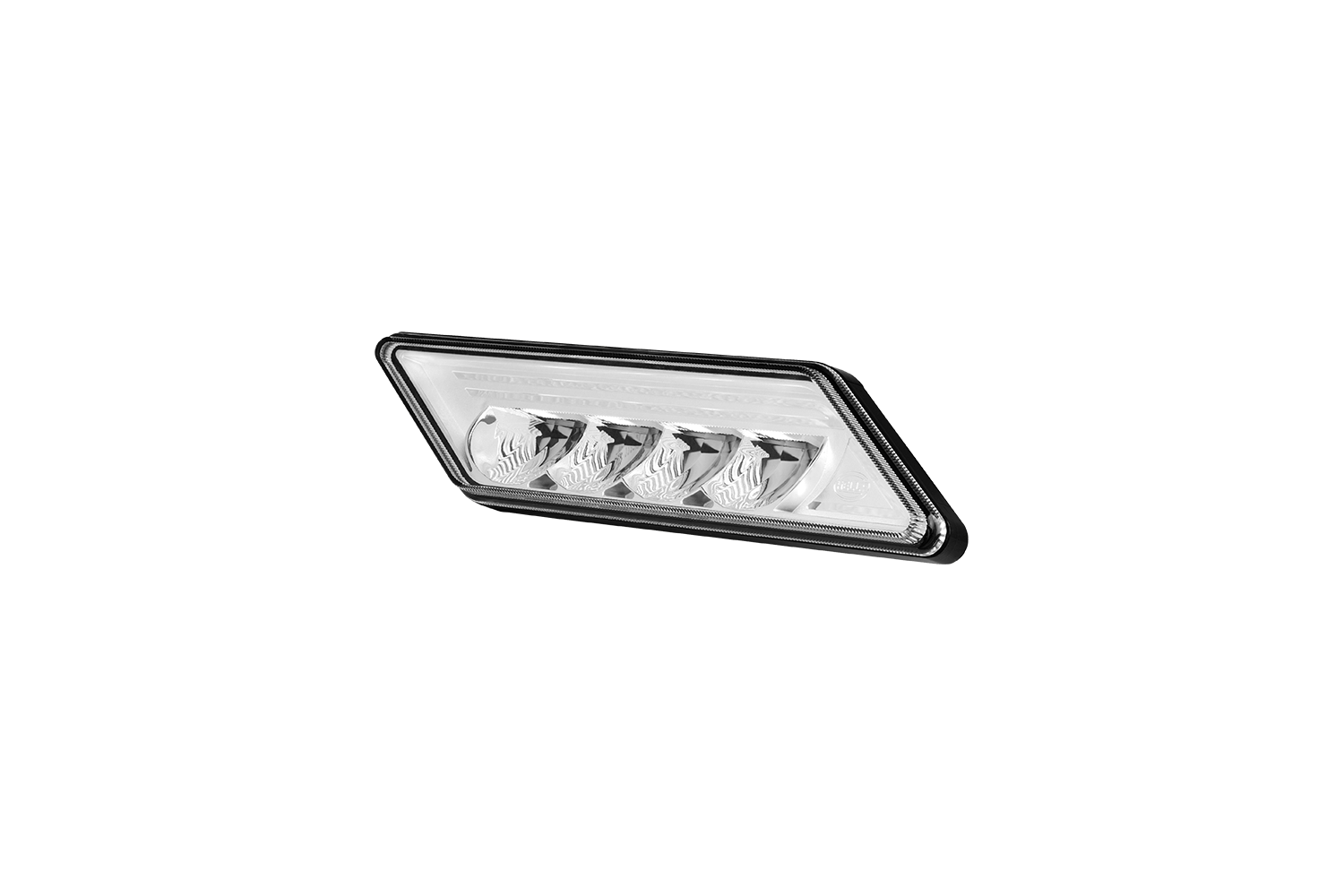

Hella Modular Worklight
R0,00
Powerful diversity: Visually, the HELLA Modular Worklight series is the perfect complement to and can be ideally combined with the lamps of the HELLA Shapeline series. The combination of the two series makes it possible to give large and small vehicle series an individual, but also uniform lighting design.

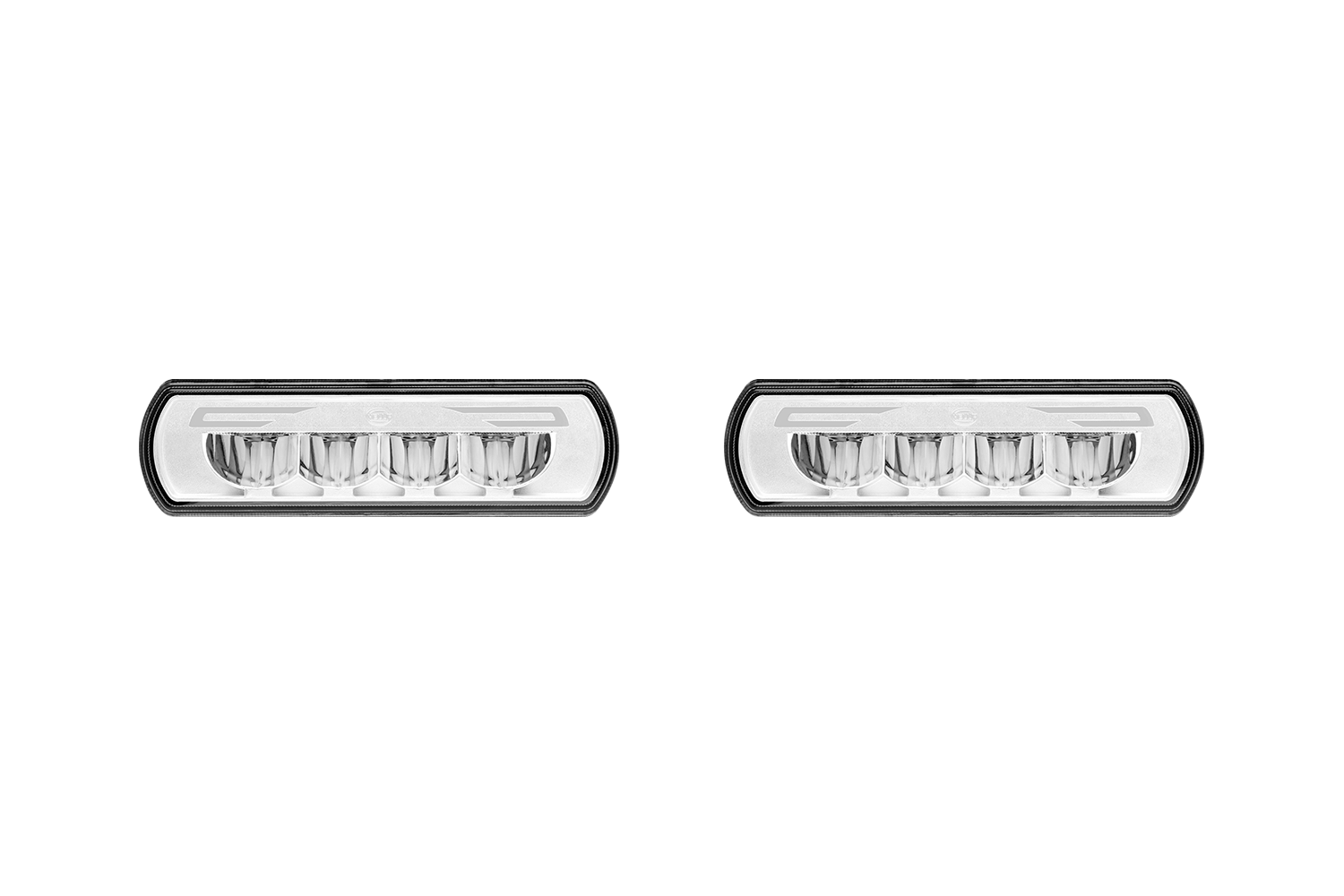

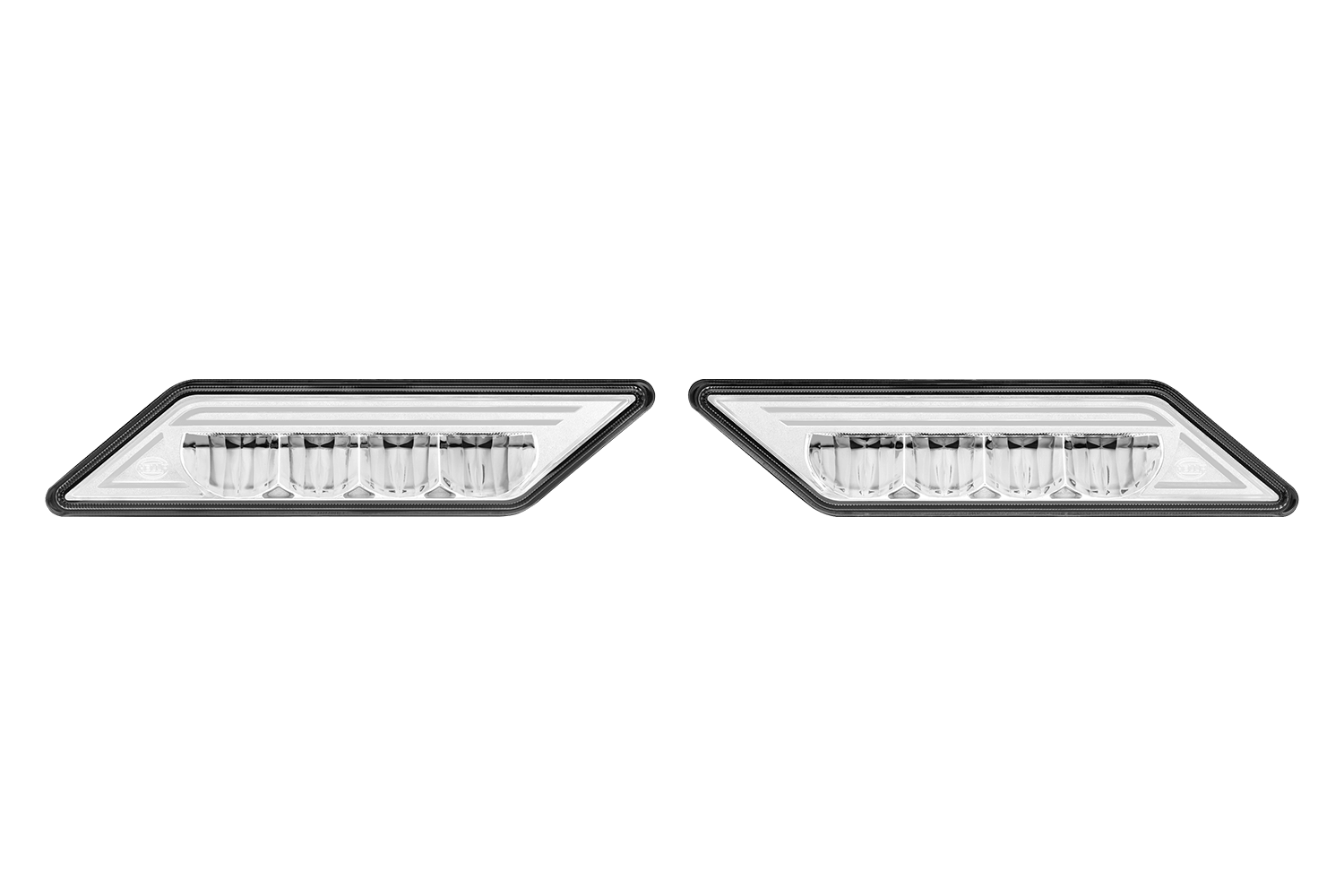

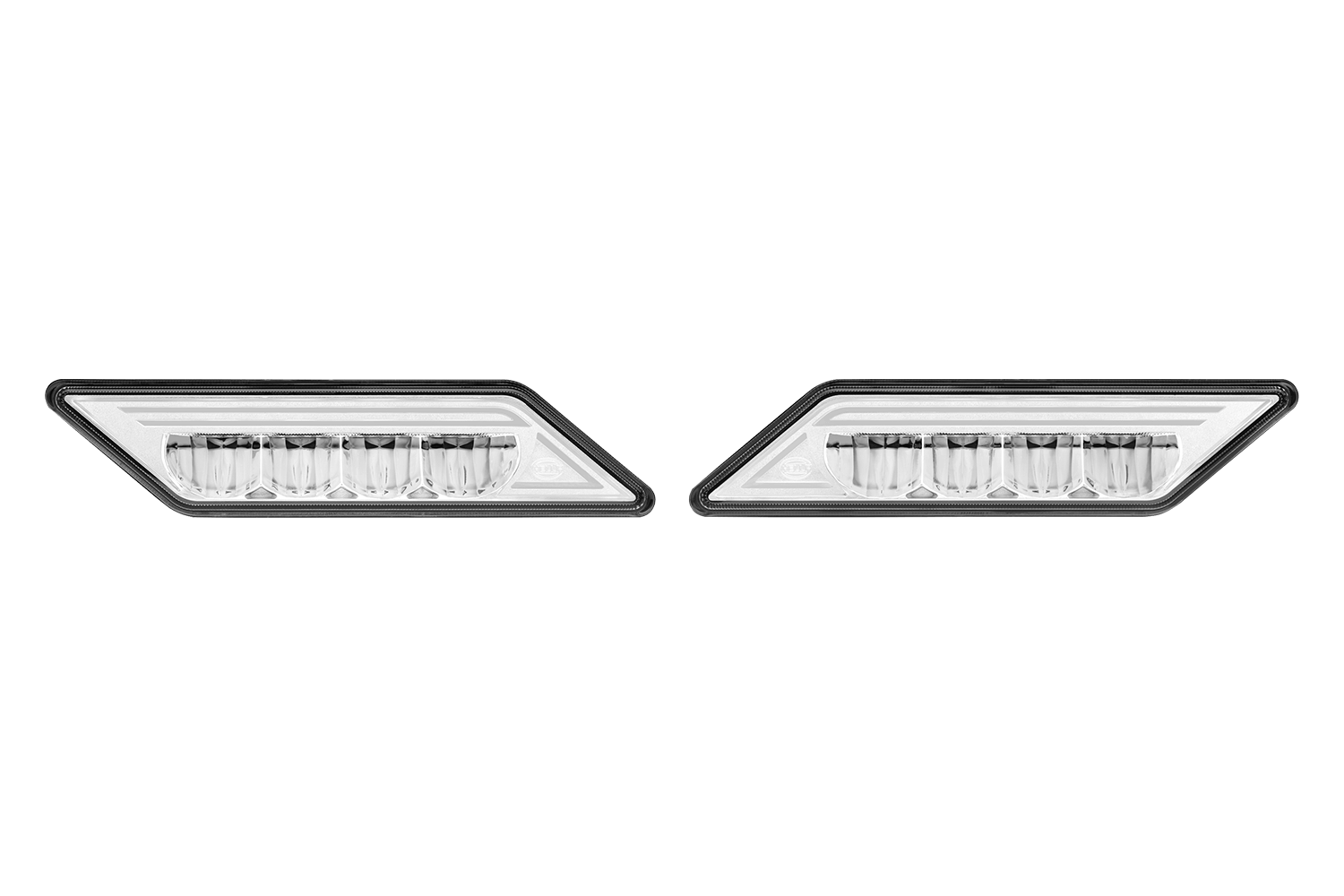

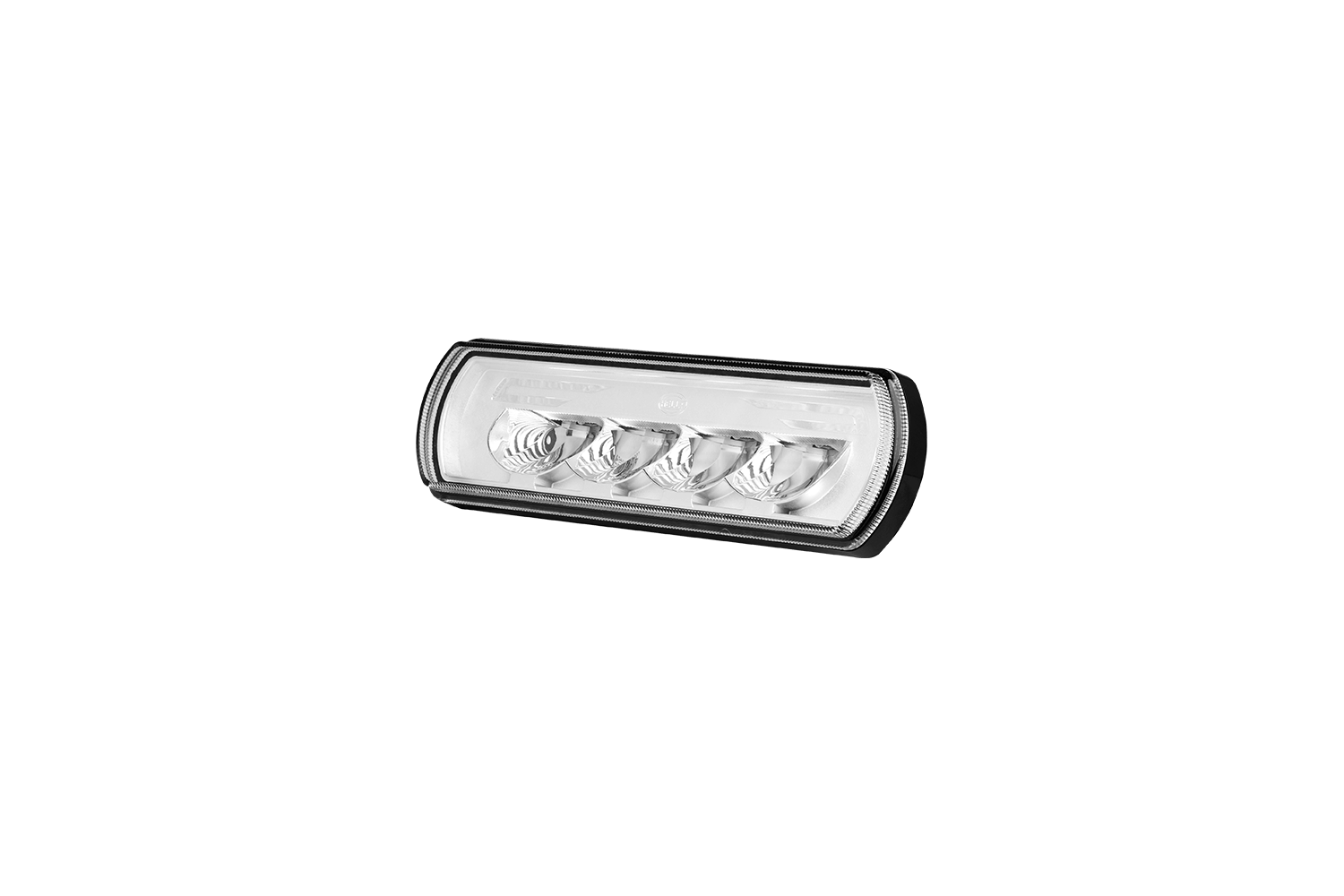

Like the lamps in the Shapeline series, the Modular Worklight lamps are also available in the two Style and Tech design lines, allowing for numerous individual design options. The LED work lamps are fully integrated into the cab roof, optimally protected against external influences.
The LEDs produce excellent illumination of the work area in a light colour that is similar to daylight and easy on the eyes. They are efficient due to their low power consumption and have an extremely long service life through zero maintenance. Depending on the variant, the Base variants achieve 1,250 lumens and the Prime variants 2,350 lumens of luminous intensity.

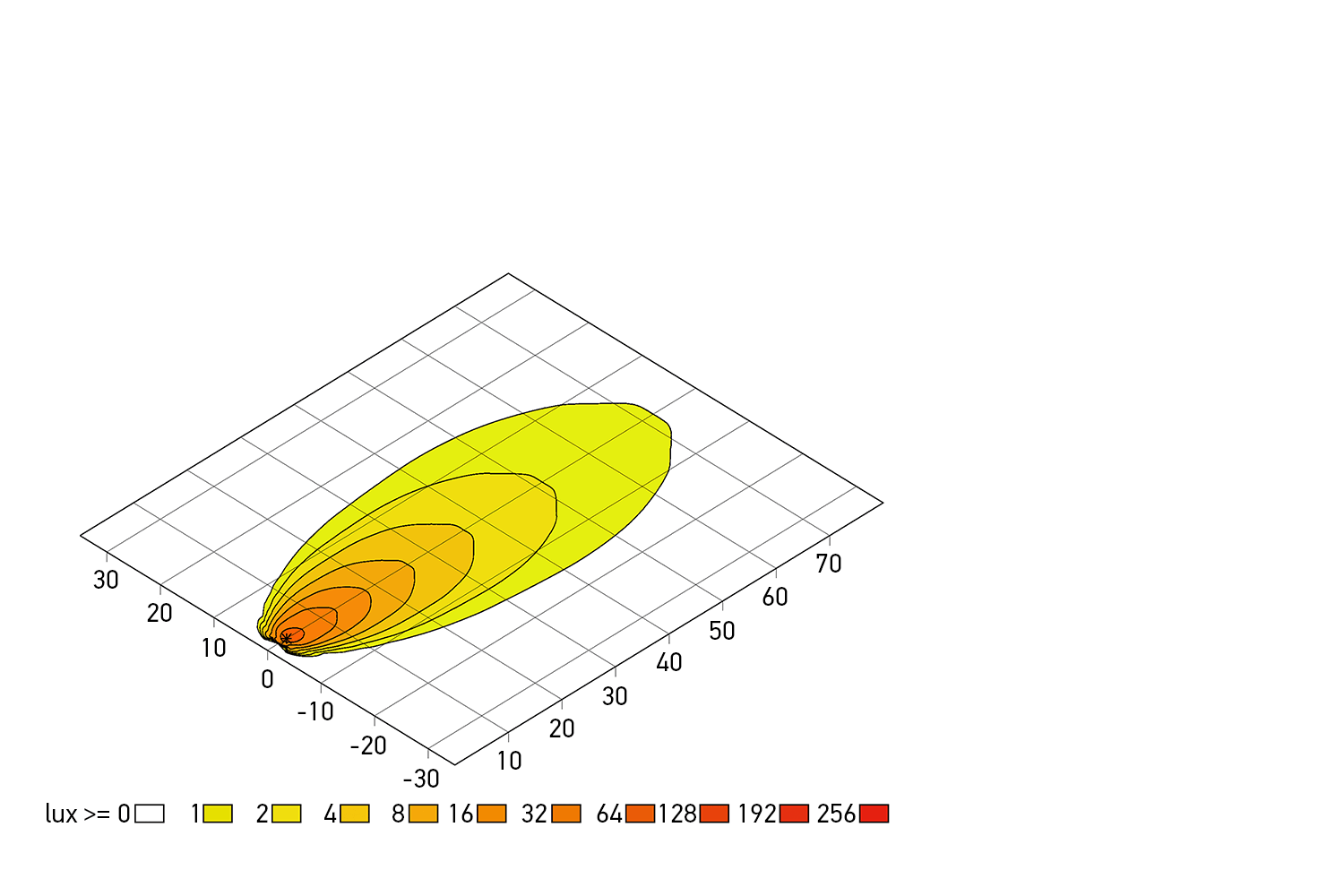

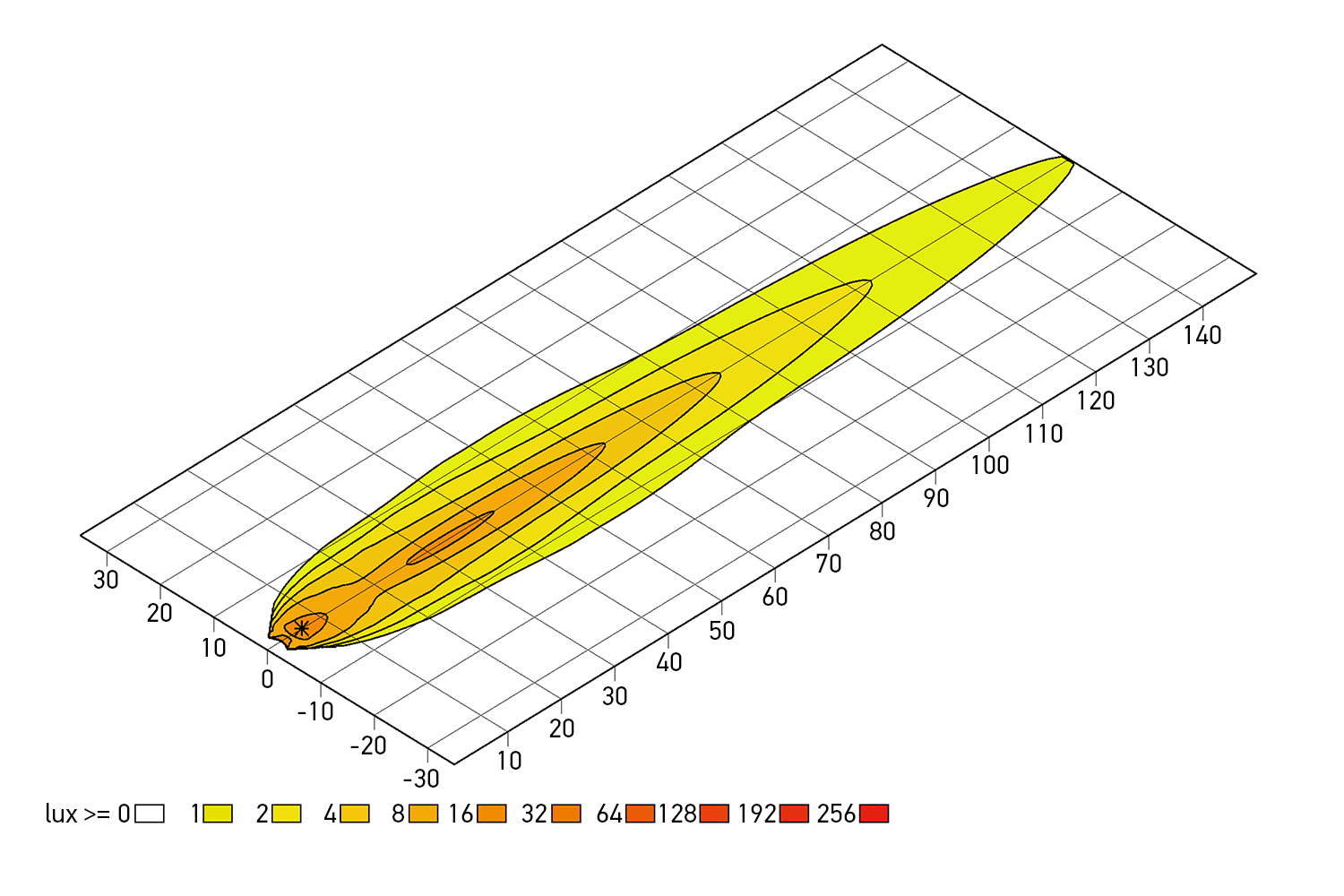

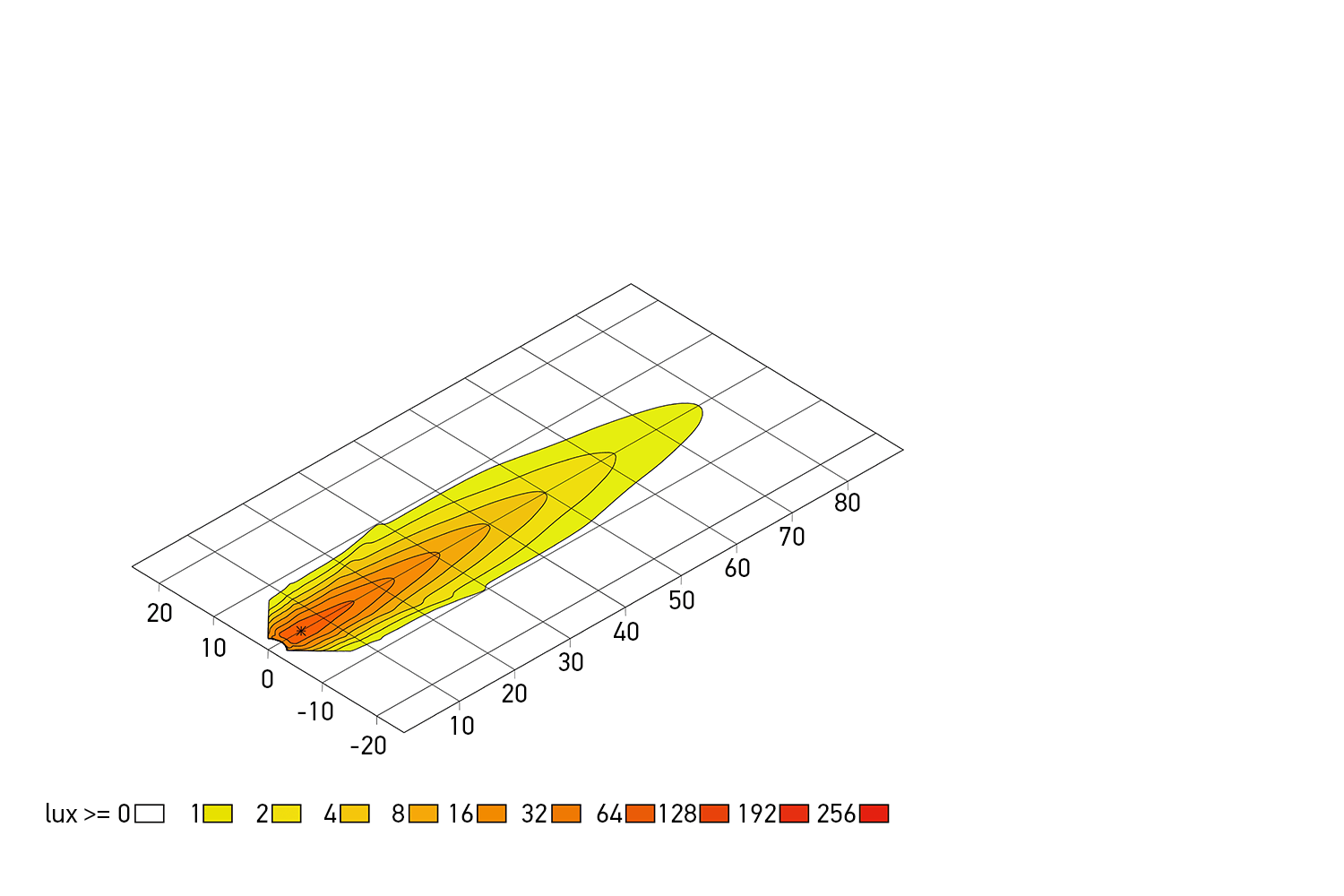

The ECE-approved, dustproof, and waterproof HELLA Modular Worklight work lamps are available for close-range and long-range illumination, and also as glare-free ZEROGLARE variants.
Specifications
| Operating voltage | Multi-voltage (9-32 V) | |
| Rated voltage | 12V/ 24 V | |
| Power consumption | 14 W | 28 W |
| Light output | 1,250 lm | 2,350 lm |
| Light source | LED | |
| Colour temperature | 6,500 K | |
| Weight |
STYLE: 380 g |
STYLE: 426 g TECH: 414 g |
| Temperature range | -40 °C to +50 °C | |
| Protection class | IP 6K9K, IP 6K8 | |
| EMC protection | ECE-R10, RCM | |
| Mounting | Integrated into the cab roof | |
| Connection | 2,000 mm cable or DEUTSCH DT connector | |
| Manufactured in | Austria | |
In top shape: The HELLA FMS Base/ FMS Prime work lamps have a flat, compact design that already makes a certain difference visually. Thanks to their small dimensions, the lamps are particularly suitable for confined installation situations. The aerodynamic lamps blend harmoniously into the vehicle’s lines and create next to no wind resistance, even when driving at high speeds.
Powerful diversity: Visually, the HELLA Modular Worklight series is the perfect complement to and can be ideally combined with the lamps of the HELLA Shapeline series. The combination of the two series makes it possible to give large and small vehicle series an individual, but also uniform lighting design.
Like the lamps in the Shapeline series, the Modular Worklight lamps are also available in the two Style and Tech design lines, allowing for numerous individual design options. The LED work lamps are fully integrated into the cab roof, optimally protected against external influences.
The LEDs produce excellent illumination of the work area in a light colour that is similar to daylight and easy on the eyes. They are efficient due to their low power consumption and have an extremely long service life through zero maintenance. Depending on the variant, the Base variants achieve 1,250 lumens and the Prime variants 2,350 lumens of luminous intensity.
The ECE-approved, dustproof, and waterproof HELLA Modular Worklight work lamps are available for close-range and long-range illumination, and also as glare-free ZEROGLARE variants.

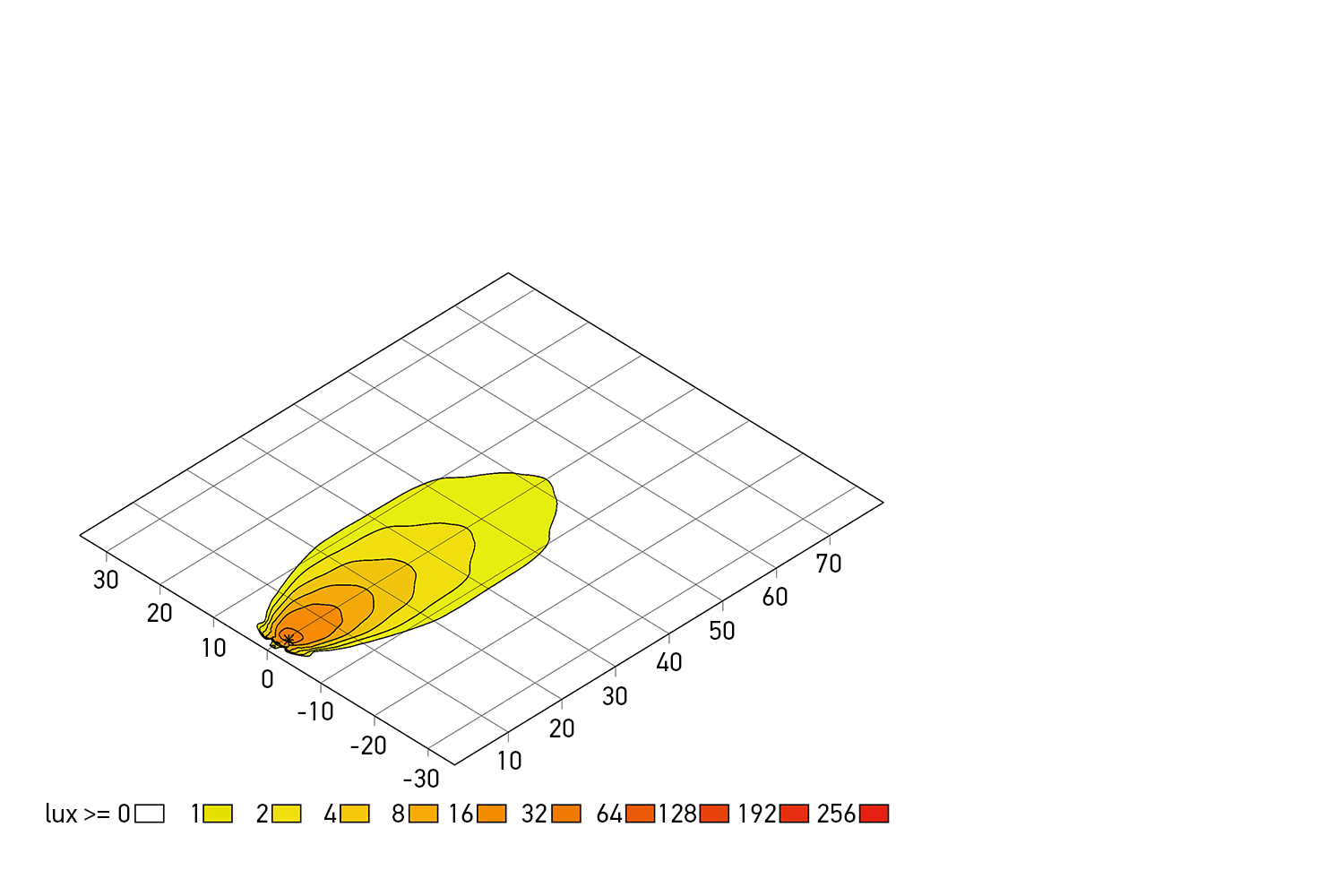

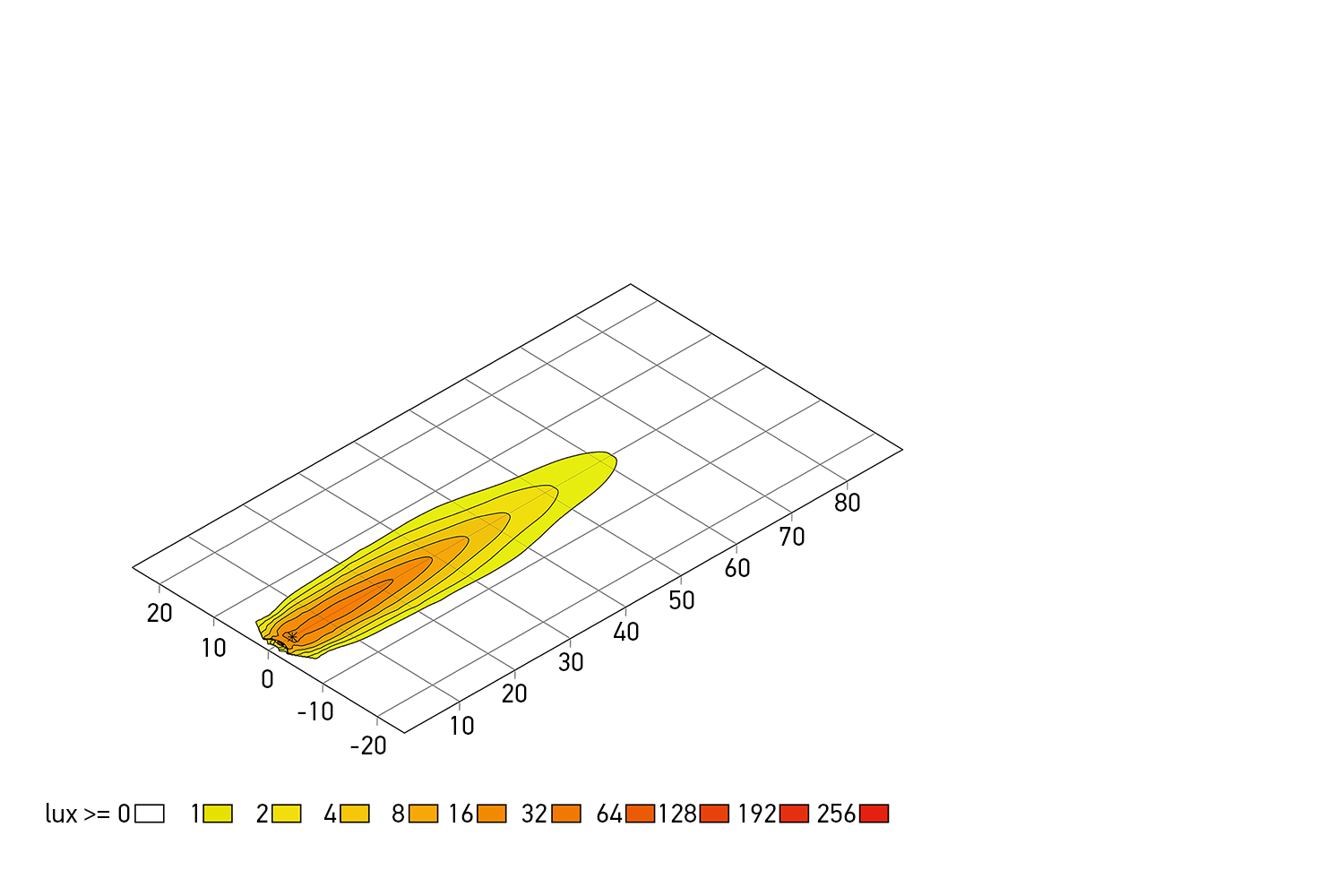

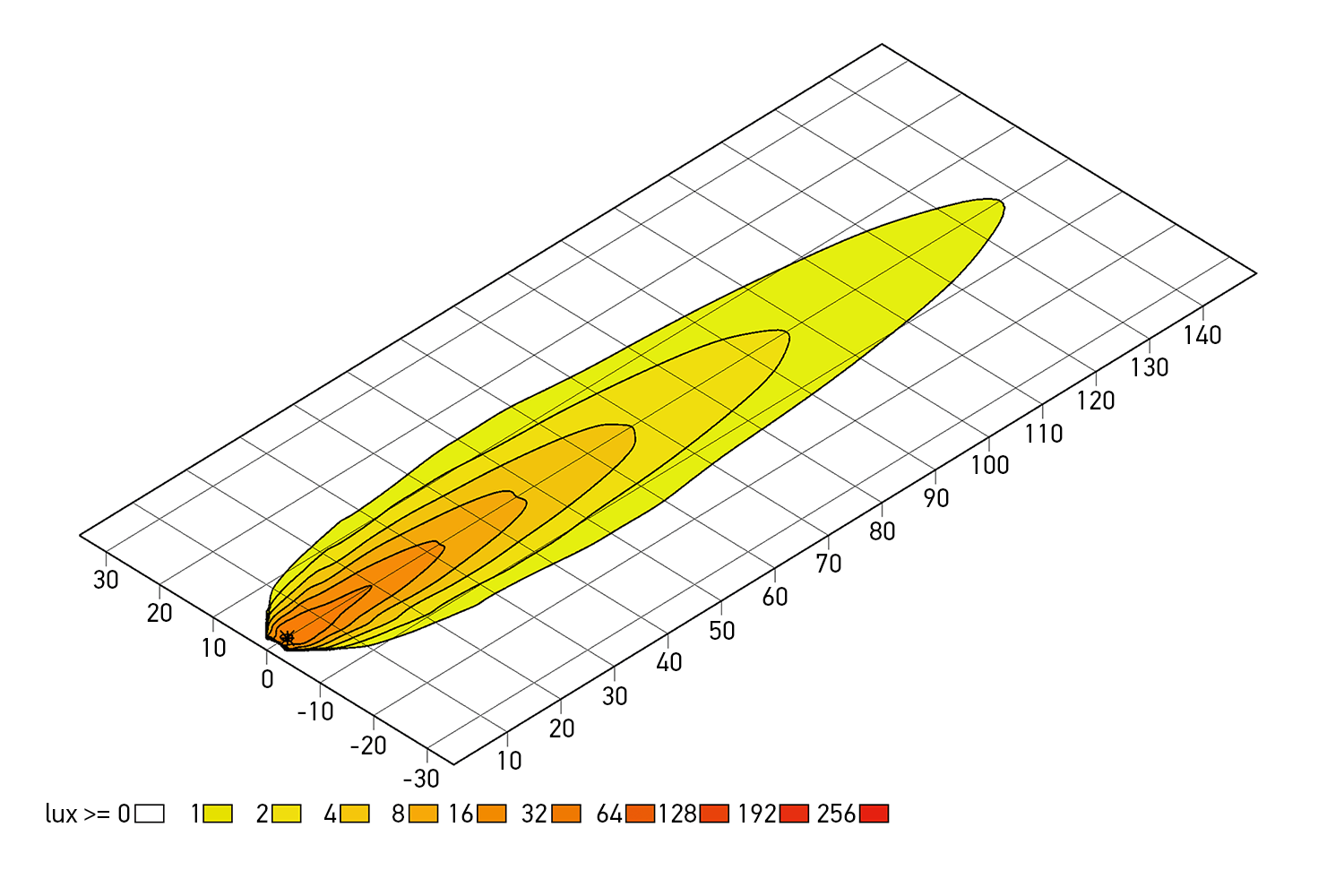

| Variant | Illumination | Design | Connection | Part number |
|---|---|---|---|---|
| Base | Close-range illumination | STYLE left | DEUTSCH DT connector | 1GE-996198-311 |
| STYLE right | DEUTSCH DT connector | 1GE-996198-321 | ||
| TECH | DEUTSCH DT connector | 1GE-996198-001 | ||
| Long-range illumination | STYLE left | DEUTSCH DT connector | 1GE-996198-331 | |
| STYLE right | DEUTSCH DT connector | 1GE-996198-341 | ||
| TECH | DEUTSCH DT connector | 1GE-996198-011 | ||
| ZEROGLARE | STYLE left | DEUTSCH DT connector | 1GE-996198-351 | |
| STYLE right | DEUTSCH DT connector | 1GE-996198-361 | ||
| TECH | DEUTSCH DT connector | 1GE-996198-021 | ||
| Prime | Close-range illumination | STYLE left | DEUTSCH DT connector | 1GE-996298-311 |
| STYLE right | DEUTSCH DT connector | 1GE-996298-321 | ||
| TECH | DEUTSCH DT connector | 1GE-996298-001 | ||
| Long-range illumination | STYLE left | DEUTSCH DT connector | 1GE-996298-331 | |
| STYLE right | DEUTSCH DT connector | 1GE-996298-341 | ||
| TECH | DEUTSCH DT connector | 1GE996298-011 | ||
| ZEROGLARE | STYLE left | DEUTSCH DT connector | 1GE-996298-351 | |
| STYLE right | DEUTSCH DT connector | 1GE-996298-361 | ||
| TECH | DEUTSCH DT connector | 1GE-996298-021 |
Additional information
| Variant | Base, Prime |
|---|---|
| Illumination | Close-range, Long-range, ZEROGLARE |
| Design | STYLE left, STYLE right, TECH |
