Hella UltraRAY 2.0/ 2.1
R0,00
Always the optimal warning: with their rotating (UltraRAY 2.0) or flashing (UltraRAY 2.1) light signal, the HELLA UltraRAY 2.0 and 2.1 beacons offer an optimum warning effect for every application.
Both types of light signal are achieved without any moving parts thanks to the long-life and energy-efficient LED technology used. This makes the beacons insensitive to external influences, such as vibrations and strong shakes. The double light system provides a warning function that draws a lot of attention thanks to the large light emission surface.
Specifications
| UltraRAY 2.0 | UltraRAY 2.1 | |
|---|---|---|
| Operating voltage | Multivolt (11 – 30 V) | |
| Rated voltage | 12 V/ 24 V | |
| Current consumption | 1,6 A (12 V) 0,8 A (24 V) |
1,8 A (12 V) 0,9 A (24 V) |
| Power consumption | Ø 20 W max. 20W |
Ø 22 W max. 53W |
| Light function | Rotating | Flashing |
| Light source | LED | |
| Material | Light dome: polycarbonate | |
| Temperature range | – 40 °C to +60 °C | |
| Protection class | IP 6K9K, IP 6K7 | |
| Type approval | ECE-R65 TA1, TB1, TR1, SAE J845 Class 1, ADR/ GGVS | |
| EMC protection | ECE-R10, CISPR 25 Class 5, RCM | |
| Mounting | Ø 130 mm or Ø 150 mm (SAE) |
|
Always the optimal warning: with their rotating (UltraRAY 2.0) or flashing (UltraRAY 2.1) light signal, the HELLA UltraRAY 2.0 and 2.1 beacons offer an optimum warning effect for every application.
Both types of light signal are achieved without any moving parts thanks to the long-life and energy-efficient LED technology used. This makes the beacons insensitive to external influences, such as vibrations and strong shakes. The double light system provides a warning function that draws a lot of attention thanks to the large light emission surface.
Both lamps have active electronics, are capable of multi-voltage, and are dust-proof, waterproof and interference-suppressed. They have ECE, RCM and SAE approval and are also suitable for hazardous material transportation in accordance with ADR/GGVS. The impact-resistant polycarbonate light dome is available in amber, blue, red, green and white.

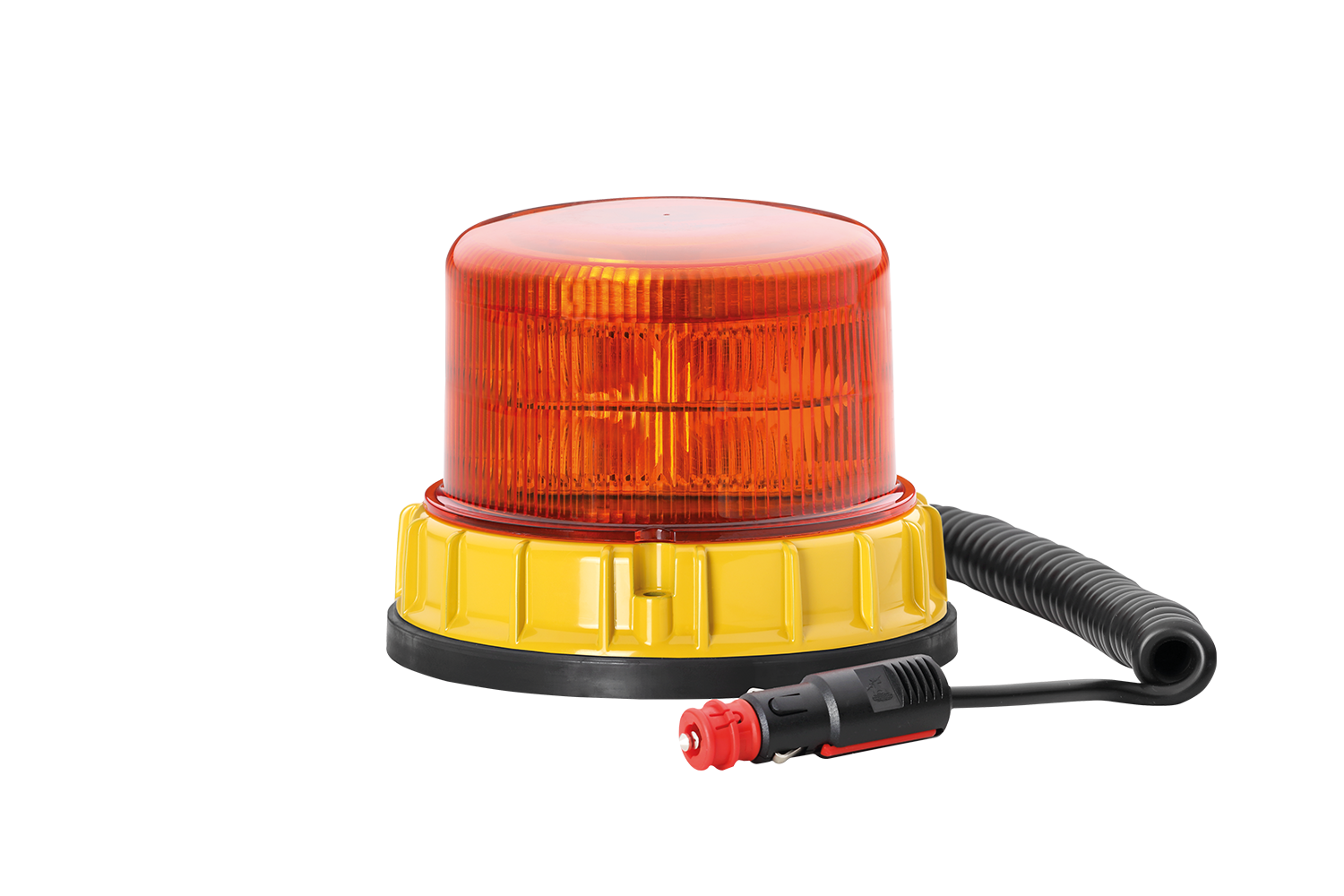

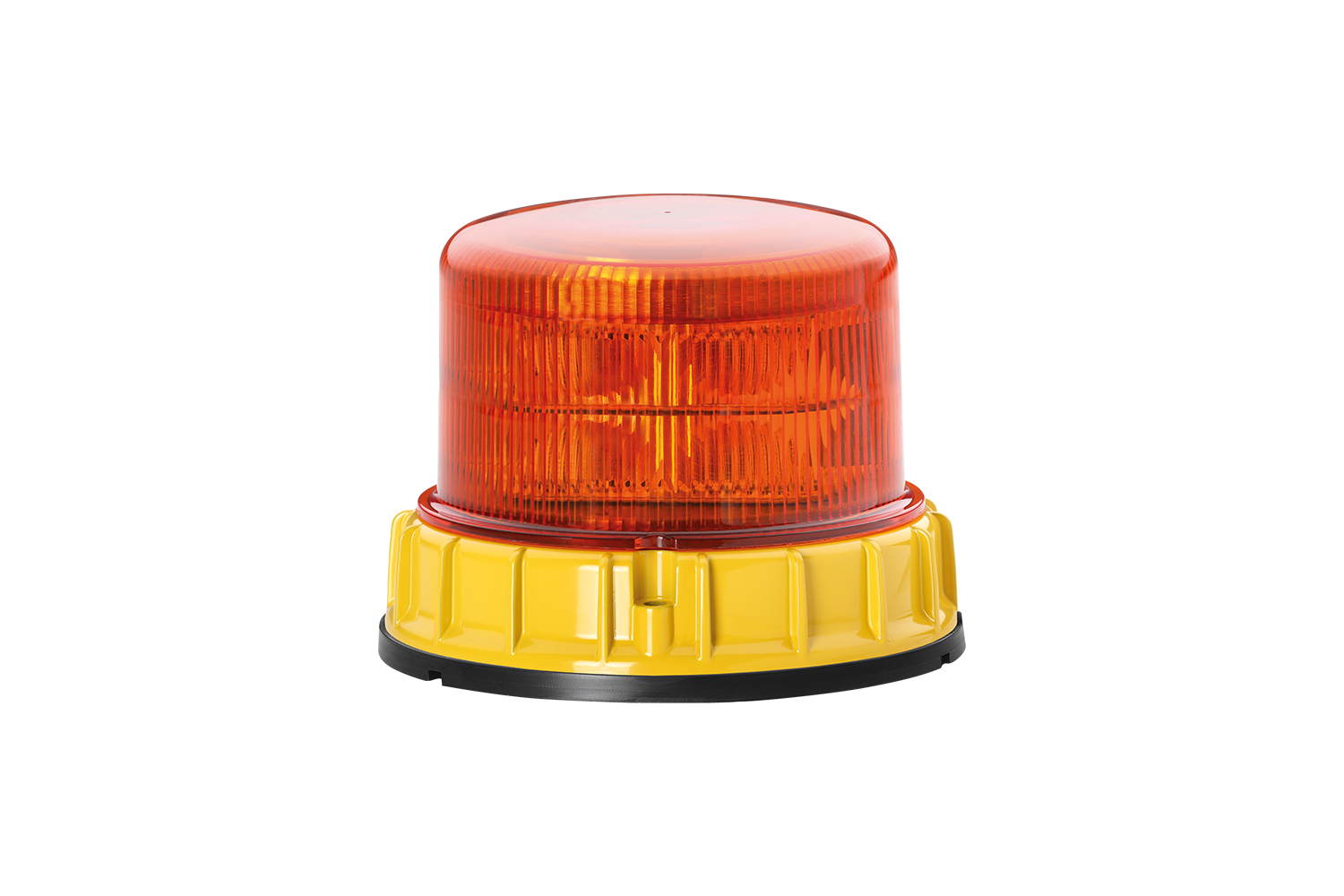

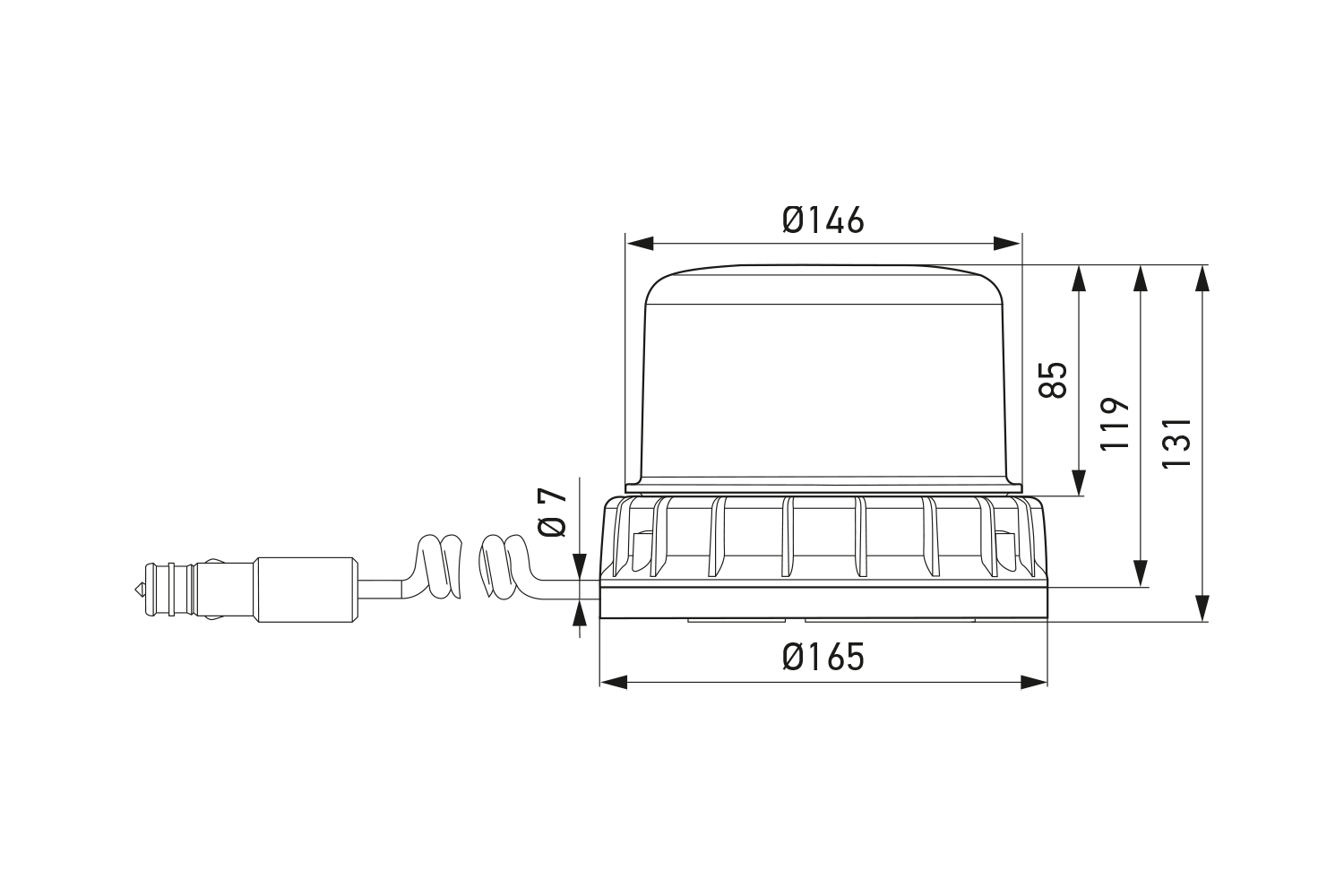

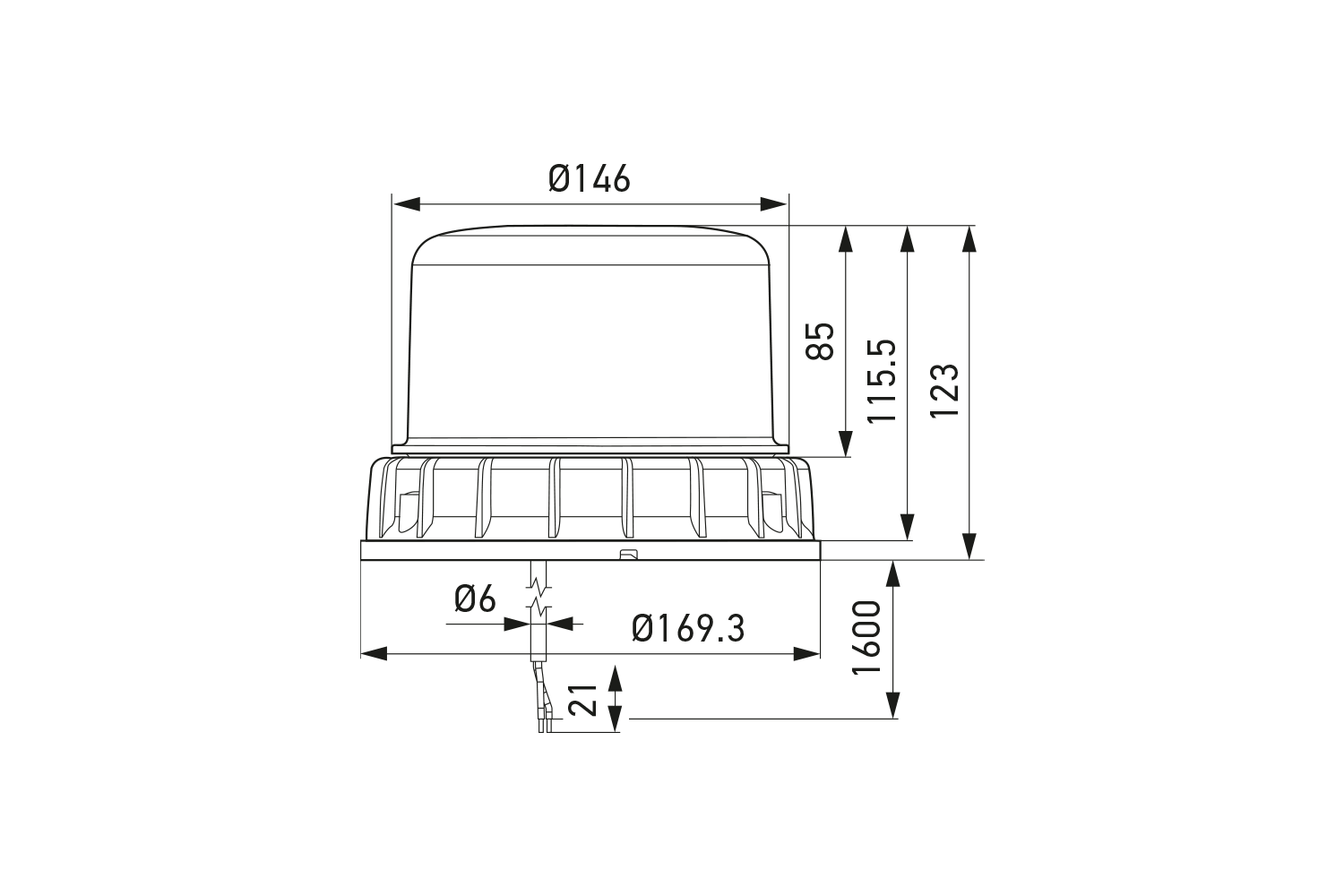

Depending on the variant, it can be installed upright using fixed surface mounting or flexible magnetic mounting.
| Variant | Type of mounting | Light dome | Part number |
|---|---|---|---|
| UltraRAY 2.0 (rotating) | Fixed mounting (F) | Amber | 2RL-012983-001 |
| UltraRAY 2.0 (rotating) | Fixed mounting (F) | Blue | 2RL-012983-011 |
| UltraRAY 2.0 (rotating) | Fixed mounting (F) | Red | 2RL-012983-021 |
| UltraRAY 2.0 (rotating) | Fixed mounting (F) | Green | 2RL-012983-031 |
| UltraRAY 2.0 (rotating) | Fixed mounting (F) | White | 2RL-012983-041 |
| UltraRAY 2.0 (rotating) | Magnet mounting (M) | Amber | 2RL-012983-101 |
| UltraRAY 2.0 (rotating) | Magnet mounting (M) | Blue | 2RL-012983-111 |
| UltraRAY 2.0 (rotating) | Magnet mounting (M) | Red | 2RL-012983-121 |
| UltraRAY 2.0 (rotating) | Magnet mounting (M) | Green | 2RL-012983-131 |
| UltraRAY 2.0 (rotating) | Magnet mounting (M) | White | 2RL-012983-141 |
| UltraRAY 2.1 (flashing) | Fixed mounting (F) | Amber | 2XD-012984-001 |
| UltraRAY 2.1 (flashing) | Fixed mounting (F) | Blue | 2XD-012984-011 |
| UltraRAY 2.1 (flashing) | Fixed mounting (F) | Red | 2XD-012984-021 |
| UltraRAY 2.1 (flashing) | Fixed mounting (F) | Green | 2XD-012984-031 |
| UltraRAY 2.1 (flashing) | Fixed mounting (F) | White | 2XD-012984-041 |
| UltraRAY 2.1 (flashing) | Magnet mounting (M) | Amber | 2XD-012984-101 |
| UltraRAY 2.1 (flashing) | Magnet mounting (M) | Blue | 2XD-012984-111 |
| UltraRAY 2.1 (flashing) | Magnet mounting (M) | Red | 2XD-012984-121 |
| UltraRAY 2.1 (flashing) | Magnet mounting (M) | Green | 2XD-012984-131 |
| UltraRAY 2.1 (flashing) | Magnet mounting (M) | White | 2XD-012984-141 |
Additional information
| Variant | UltraRAY 2.0 (rotating), UltraRAY 2.1 (flashing) |
|---|---|
| Type of mounting | Fixed Mounting, Magnet mounting |
| Light Dome | Amber, Blue, Red, Green, White |
