Hella Jump Start Terminal for mining
R0,00

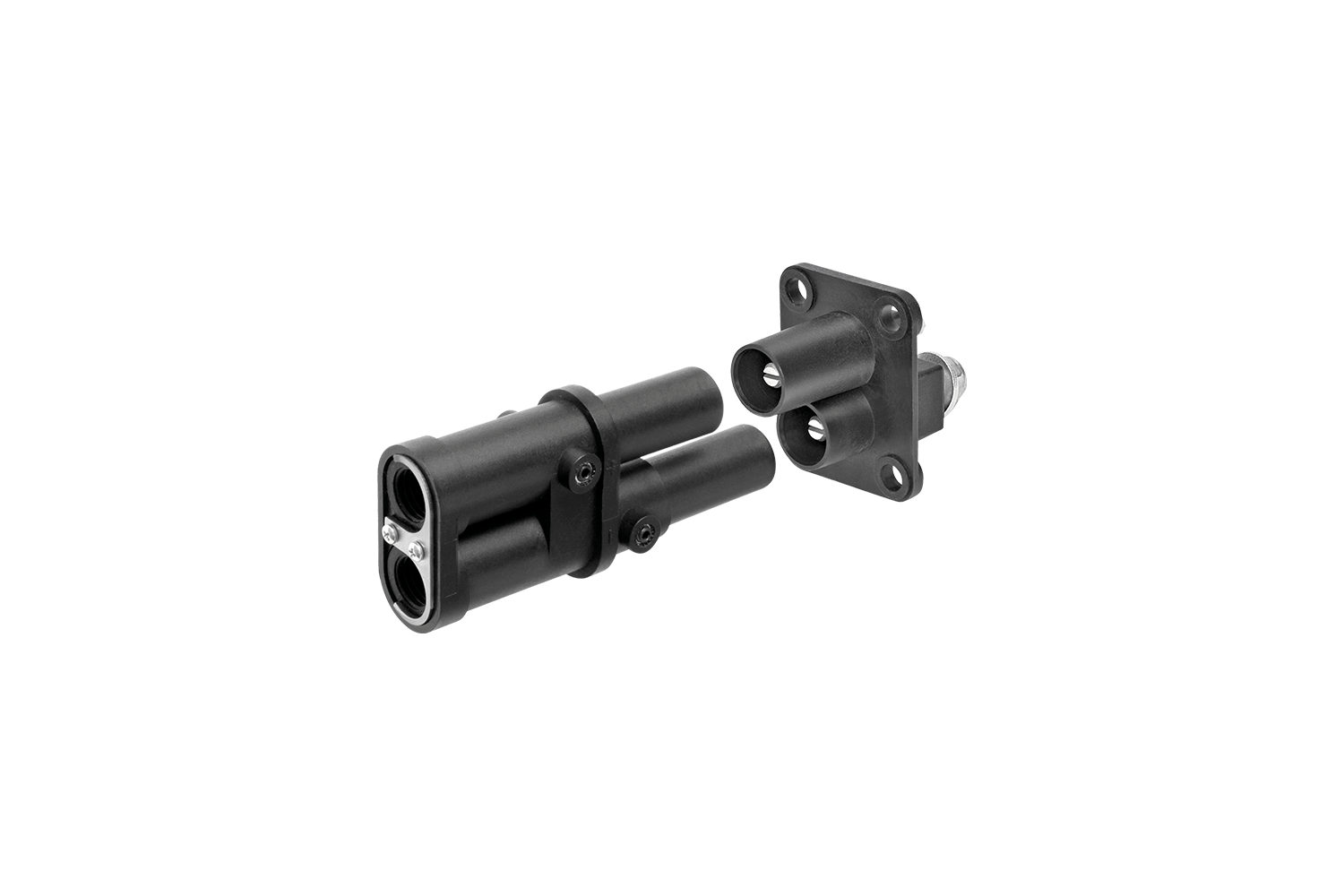

Heavy duty, high capacity jump-start connectors for vehicles and equipment, ideal for use where access to terminals is restricted or dangerous. Eliminates chance of cross polarity connections though the specially shaped plug and reduces chance of sparking and possible ignition of flammable materials. Mounting bracket, protective cap, and kit containing the terminal, bracket and are also available.
Specifications
| Material | High impact ABS plastic, copper (silver brass coated) terminal |
| Connection | Suitable for 70 mm² cable, connection via crimping and soldering process |
Heavy duty, high capacity jump-start connectors for vehicles and equipment, ideal for use where access to terminals is restricted or dangerous. Eliminates chance of cross polarity connections though the specially shaped plug and reduces chance of sparking and possible ignition of flammable materials. Mounting bracket, protective cap, and kit containing the terminal, bracket and are also available.
| Jump Start Plug* | |
|---|---|
| Description | Part number |
| High impact ABS plastic, copper (silver brass coated) terminals, suitable for 70 mm² cable, connection via crimping and soldering process |
8JA-177305-101 |

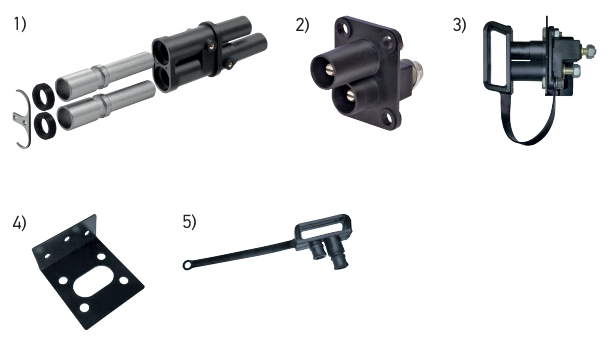

| Jump Start Terminal* | ||
|---|---|---|
| Variant | Description | Part number |
| Jump Start Terminal | Removes risk of terminal crossing, high impact ABS, plastic zinc coated terminals | 8JB-177305-001 |
| Terminal Kit | Kit of jump start terminal, bracket and cap | 8HG-177305-031 |
| Terminal Bracket | Bracket for mounting jump start terminal to vehicle body | 8HG-177305-021 |
| Terminal Cap | Cap to protect terminal from external environment when not in use | 9HD-177305-011 |
Additional information
| Jump Start | Plug, Terminal |
|---|---|
| Variant | Plug, Jump Start Terminal, Terminal Kit, Terminal Bracket, Terminal Cap |
