Hella MotoVox Compact Horn
R0,00
Sound for greater safety: Signal horns are required in vehicles by law so that other road users can be made aware of dangerous situations in a clearly audible manner.

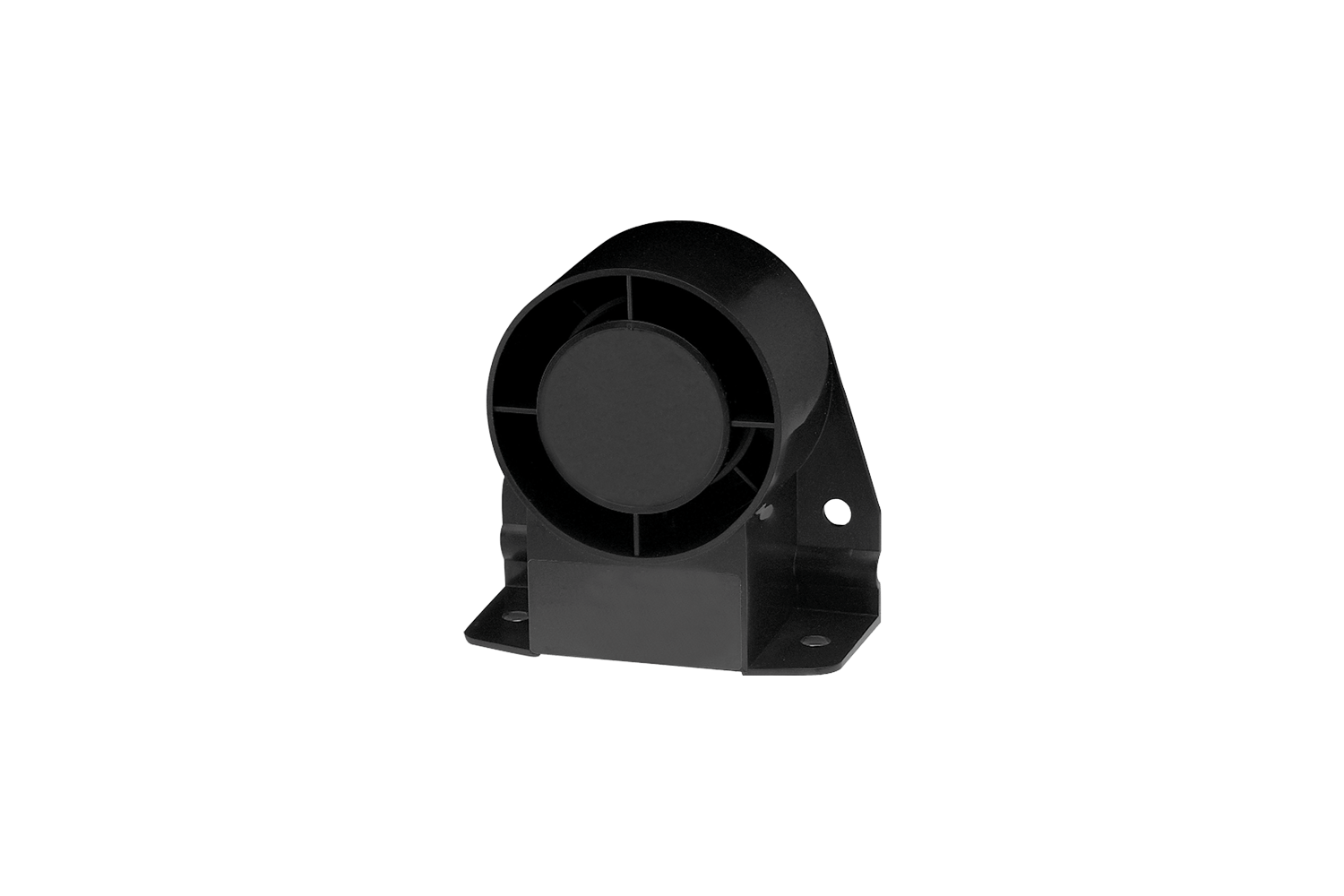

The MotoVox Compact horns for mining are available with 107 dB, 112 dB and 117 dB. All three variants are electronic horns with a very long service lifetime. Moreover, they meet or exceed all applicable SAE specifications and are primarily used by major OEMs.
Specifications
| Operating voltage | 12 – 24 V |
| Connection | open cable end |
| Sound pressure level at 1.2 m distance | 107 dB, 112 dB or 117 dB |
| Type approval | 107 dB: SAE J1105 Sept 89, Type 1 112 dB: SAE J1105 Sept 89, Type K. U.L. 117 dB: SAE J1105 Sept 89, Type J for 24 V systems SAE J1105 Sept 89, Type K for 12 V systems |
Sound for greater safety: Signal horns are required in vehicles by law so that other road users can be made aware of dangerous situations in a clearly audible manner.
The MotoVox Compact horns for mining are available with 107 dB, 112 dB and 117 dB. All three variants are electronic horns with a very long service lifetime. Moreover, they meet or exceed all applicable SAE specifications and are primarily used by major OEMs.

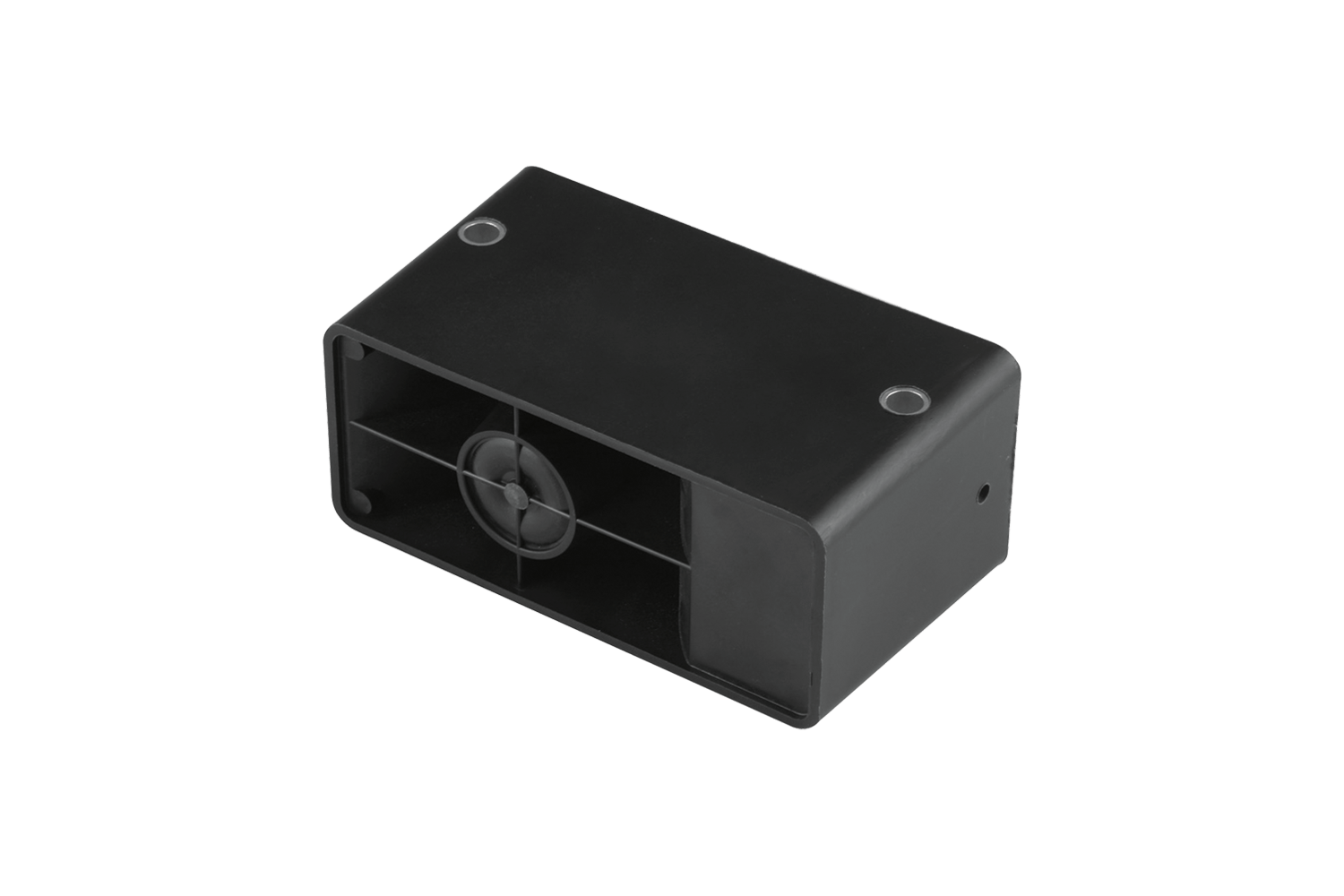

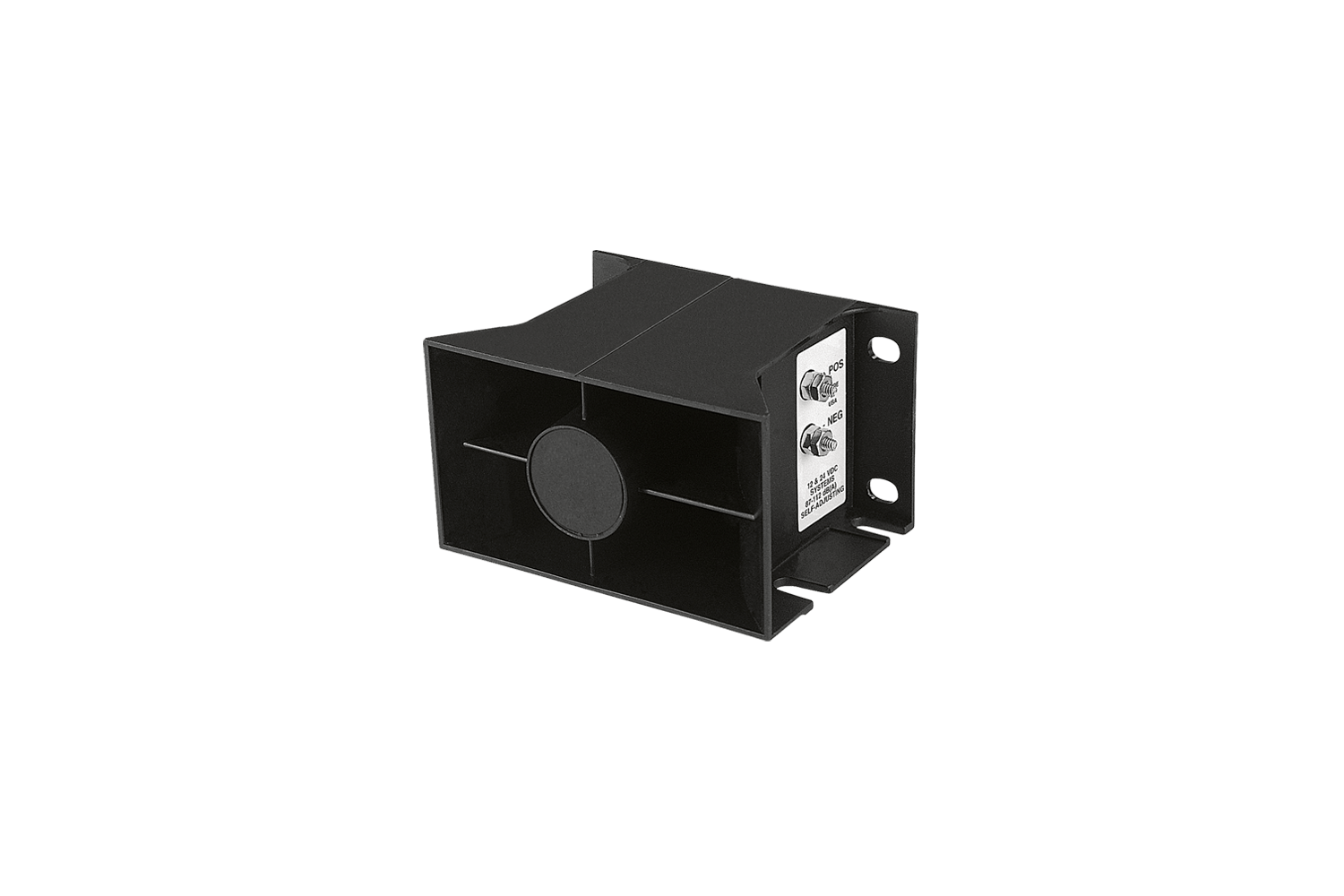

The variant with 112 dB is a compact electronic horn with an extremely long service lifetime as a replacement for high-maintenance electromechanical horns. The MotoVox Compact 117 dB is a robust electronic horn and features a high decibel level as well as an extremely long lifetime.
| Variant | Part number |
|---|---|
| MotoVox Compact 107 dB | 3TA-910156-001 |
| MotoVox Compact 112 dB | 3TA-910156-021 |
| MotoVox Compact 117 dB | 3TA-910156-011 |
Additional information
| Variant | MotoVox Compact 107 dB, MotoVox Compact 112 dB, MotoVox Compact 117 dB |
|---|
