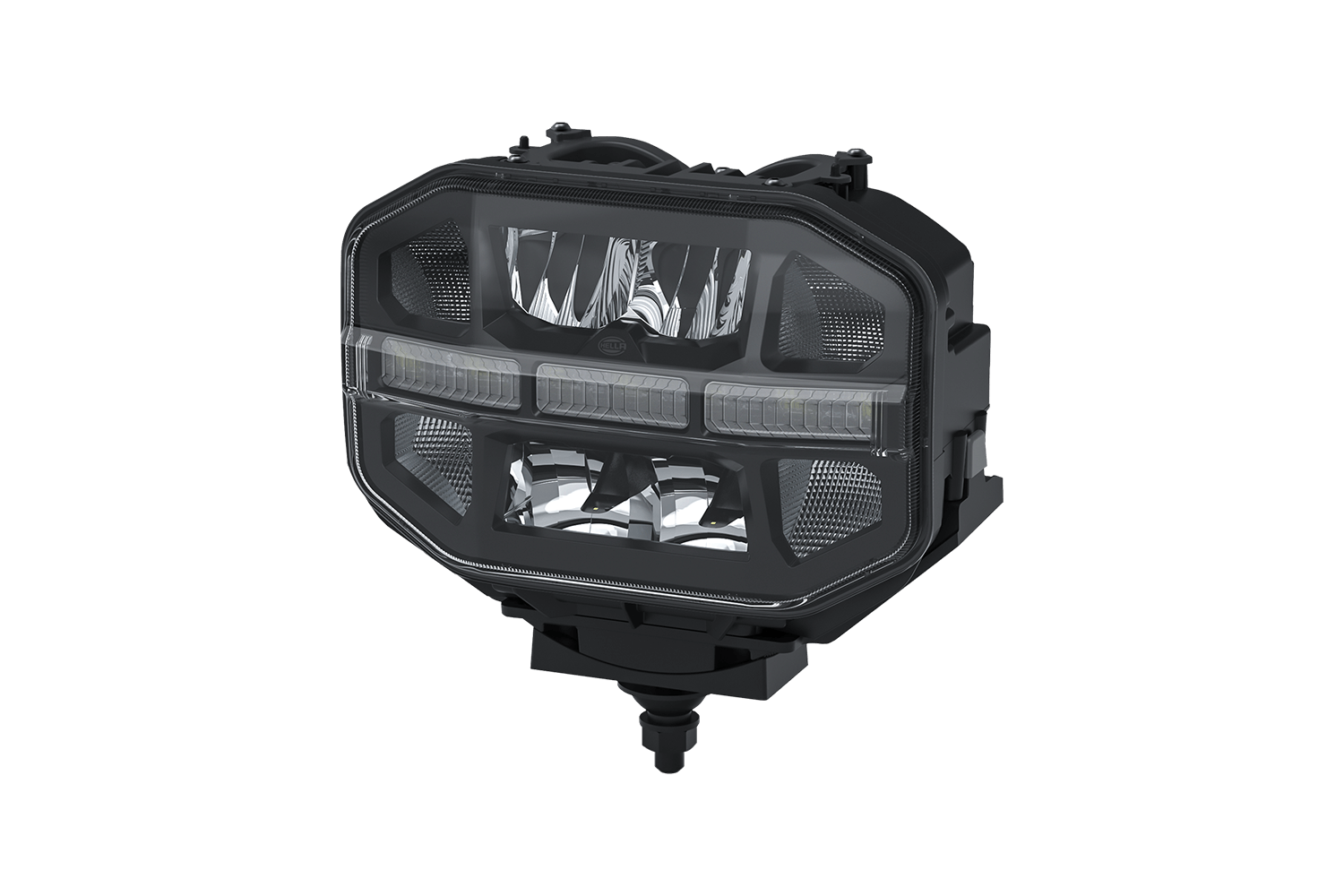

Hella LED combination headlamp C240

R0,00

This combination headlamp offers high beam, low beam, daytime running light, position light, front direction indicator and side direction indicator (cat. 5) in 100 % LED technology. The C240 LED meets all ECE and SAE requirements and is ideal for use on vehicles around the world. It offers the flexibility to choose from the essential series offering symmetrical light distribution and the performance series offering asymmetrical light distribution.

Specifications

Operating voltage Multi-voltage (9-32 V)
Rated voltage

12 V and 24 V

Current consumption see brief information (download-section)
Power consumption see brief information (download-section)
Light function High beam, low beam, daytime
running light, position light, front
direction indicator and side direction indicator (cat. 5)
Light source

LED

Material

PBT GF30

Weight   Centre mounting: 2,400 g
Bottom mounting: 2,500 g
Temperature range -40 °C to +50 °C
Protection class IP 6K9K
Approved ECE ES / LES: R149.01
ECE symmetric: R149.01 class CS
ECE R148.01
FMVSS 108, UKCA, ECE-R10.06
Compliant CISPR 25 Class 5, ECE-R10
Mounting M 12 x 50 Bolt
Connection 6-pin DEUTSCH-connector
SKU: N/A Categories: ,

This combination headlamp offers high beam, low beam, daytime running light, position light, front direction indicator and side direction indicator (cat. 5) in 100 % LED technology. The C240 LED meets all ECE and SAE requirements and is ideal for use on vehicles around the world. It offers the flexibility to choose from the essential series offering symmetrical light distribution and the performance series offering asymmetrical light distribution.
The housing of the headlamp is made of PBT GF30 and an aluminium element at the top features excellent thermo management, prevents the headlamp from overheating and contributes to a longer product life. In addition, it is possible to engrave a customer logo in the center of the housing.

With its robust lens made of toughened, shatterproof plastic, the C240 headlamp is particularly resistant to vibration - ideal for the tough conditions on e. g. agricultural machinery as well as construction vehicles (strong vibrations, dust, wetness, mechanical shock, etc.).

Cat. 5 with DRL, class B asymmetric, LES, bottom mount Left 1LF-328550-351
Right 1LF-328550-361



Additional information

Mount

Cat. 5 with DRL, class B asymmetric, LES, bottom mount

Variant

Left, Right
