Hella RokLUME 140

R0,00

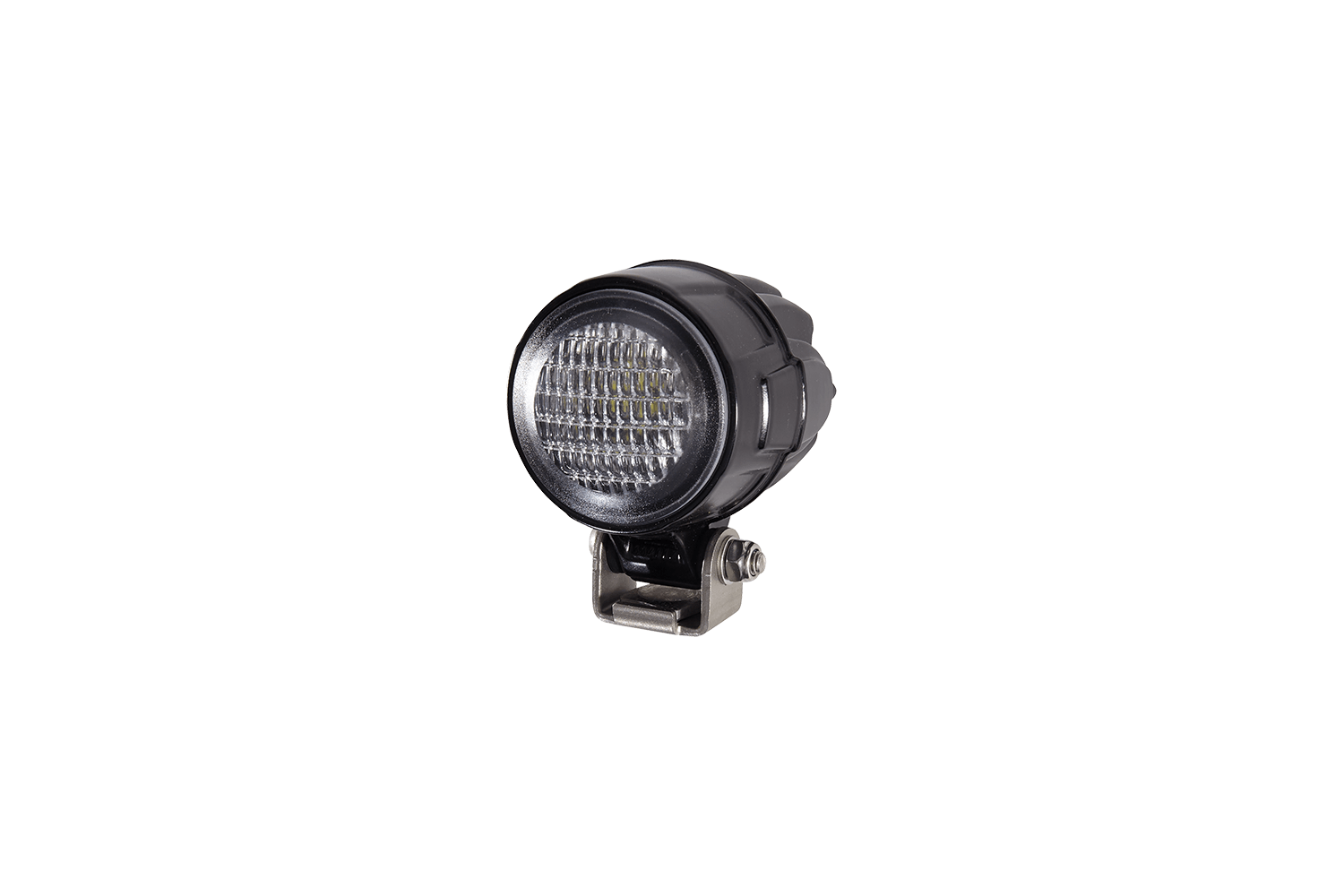

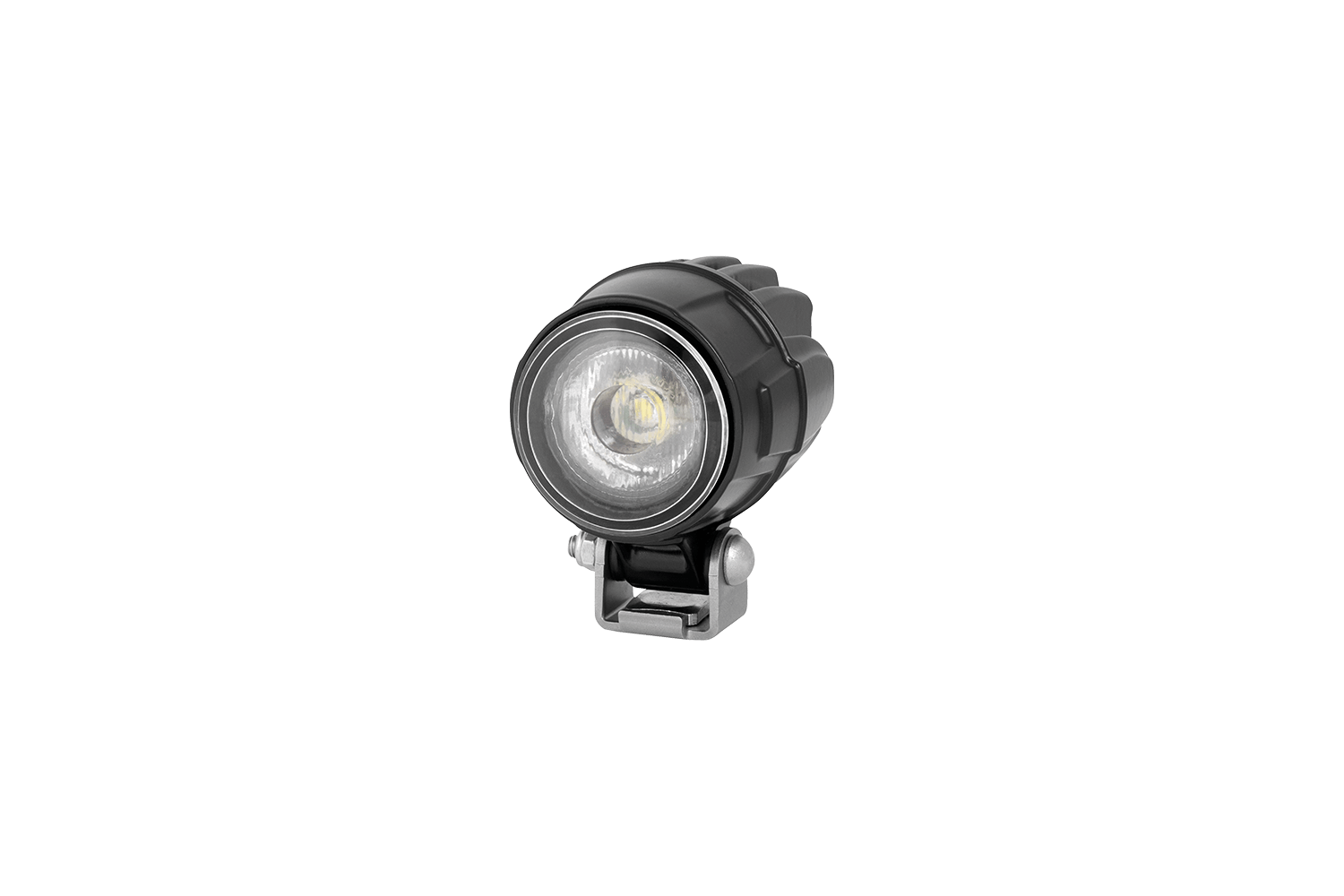

Tiny, but powerful: The HELLA RokLUME 140 is the smallest headlamp in the HELLA portfolio. Despite its ultra-compact dimensions, it provides 800 lumens of light output for good illumination of the working area, at close- or long-range depending on the variant. The lamp is particularly suitable for mounting situations with very little space.

The consumption of the durable, energy-efficient LEDs is just 15 watts. The RokLUME 140 can therefore also be used for battery-operated vehicles or those with heavily stressed alternators. The light colour, which is similar to daylight, ensures optimal vision and prevents eye fatigue.

Specifications

Operating voltage Multi-voltage (9-48 V)
Rated voltage 12 V/ 24 V/ 42 V
Power consumption 15 W
Light output 800 lm
Light source LED
Colour temperature 6,500 K
Material Housing: die-cast aluminium
Weight 333 g
Temperature range -40 °C to +50 °C
Protection class IP 5K9K, IP 5K4K
EMC protection ECE-R10, RCM
Salt spray resistance 720 h as per DIN EN ISO 9227
Mounting Upright or pendant
Connection DEUTSCH DT 2 pin connector
Manufactured in Austria



SKU: N/A Categories: ,

Tiny, but powerful: The HELLA RokLUME 140 is the smallest headlamp in the HELLA portfolio. Despite its ultra-compact dimensions, it provides 800 lumens of light output for good illumination of the working area, at close- or long-range depending on the variant. The lamp is particularly suitable for mounting situations with very little space.

The consumption of the durable, energy-efficient LEDs is just 15 watts. The RokLUME 140 can therefore also be used for battery-operated vehicles or those with heavily stressed alternators. The light colour, which is similar to daylight, ensures optimal vision and prevents eye fatigue.

The black aluminium housing is highly robust and resistant to shocks, impacts, and vibrations. The additional cooling fins optimally dissipate heat and, in conjunction with the temperature sensor, prevent the lamp from overheating.

The integrated electronics are multi-voltage-capable, provide polarity reversal and overvoltage protection, and ensure lastingly uniform illumination.

The lamp can be mounted upright or pendant, depending on the variant.

Illumination Mounting Part number
Close-range illumination Upright 1G0-995050-001
Pendant 1G0-995050-011
Long-range illumination Upright 1G0-995050-021

Additional information

Illumination

Close-range illumination, Long-range illumination

Mounting

Upright, Pendant
