Hella RokLUME S700
R0,00

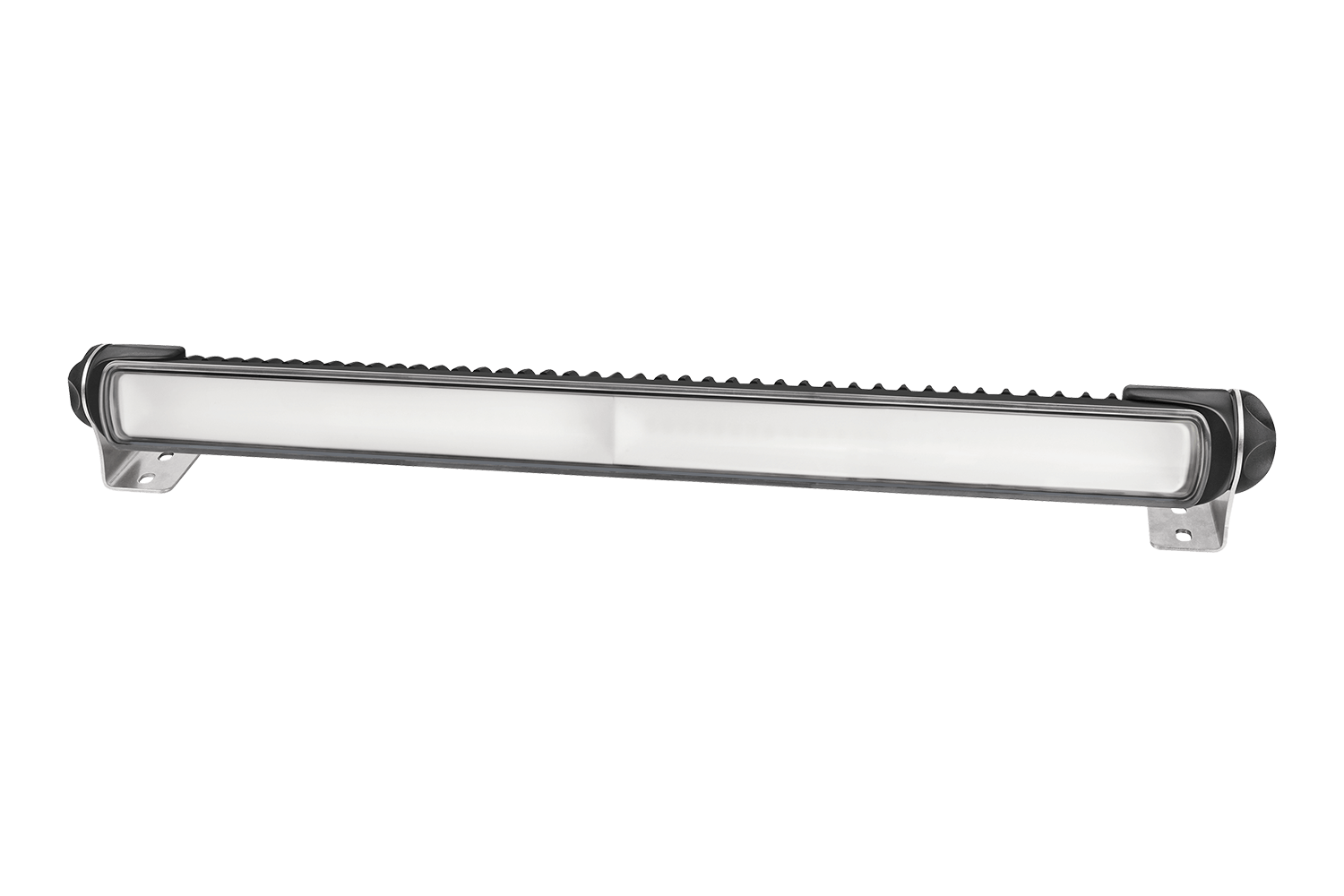

Slim, versatile, robust: The HELLA RokLUME S700 LED work lamps are real eye-catchers, thanks to their flat light strip design, and facilitate use in numerous application areas.
The durable, energy-efficient high-performance LEDs generate a maximum of 3,600 lumens of light output (diffuse flood), depending on the illumination variant. In addition to the diffuse flood variant, there are also variants for close-range illumination, for long-range illumination, and a combination variant. The special lenses ensure homogeneous illumination in all variants. Two brightness levels (except for the combination variant) allow the current consumption to be reduced when necessary, thus conserving the vehicle’s battery. Consumption is a maximum of 36 watts at 100% brightness.
Specifications
| Long-range and close-range |
Combined | Diffuse flood | |
|---|---|---|---|
| Operating voltage | Multi-voltage (9-32 V) | ||
| Rated voltage | 12 V/ 24 V | ||
| Power consumption | 36 W (100%) 4 W (10%) |
36 W (combined) 18 W (long-range/ close-range) |
36 W (100%) 4 W (10%) |
| Light output | 2,800 lm (100%) 280 lm (10%) |
2,200 lm | 3,600 lm (100%) 360 lm (10%) |
| Light source | LED | ||
| Colour temperature | 5,000 K | ||
| Material | Housing: heat conductive plastic Cover lens: heavy duty Grilamid® |
||
| Weight | 990 g | 995 g | 930 g |
| Temperature range | -40 °C to +60 °C | ||
| Protection class | IP 6K9K, IP 6K7 | ||
| EMC protection | ECE-R10, RCM | ||
| Salt spray resistance | 720 h as per DIN EN ISO 9227 | ||
| Mounting | Upright and pendant | ||
| Connection | 2,500 mm cable | ||
Slim, versatile, robust: The HELLA RokLUME S700 LED work lamps are real eye-catchers, thanks to their flat light strip design, and facilitate use in numerous application areas.
The durable, energy-efficient high-performance LEDs generate a maximum of 3,600 lumens of light output (diffuse flood), depending on the illumination variant. In addition to the diffuse flood variant, there are also variants for close-range illumination, for long-range illumination, and a combination variant. The special lenses ensure homogeneous illumination in all variants. Two brightness levels (except for the combination variant) allow the current consumption to be reduced when necessary, thus conserving the vehicle's battery. Consumption is a maximum of 36 watts at 100% brightness.
| Illumination | Part number |
|---|---|
| Close-range illumination | 1GJ 958 130-621 |
| Long-range illumination | 1GJ 958 130-651 |
| Combination illumination | 1GJ 958 130-461 |
| Diffuse flood illumination | 1GJ 958 130-521 |
Additional information
| Beam Pattern | Close-Range, Long-Range, Combination, Diffuse Flood |
|---|
